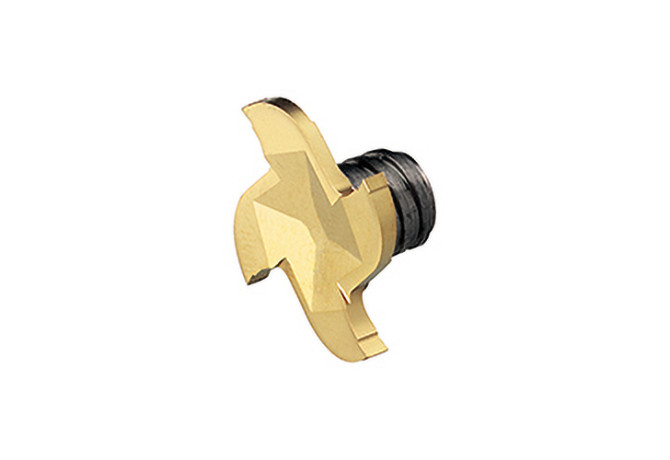

Главная Каталог продукции Toolunited 11 303-05 - T-slot end mill 17T21760T8RK30 IN1530

17T21760T8RK30 IN1530

17T21760T8RK30 IN1530 17T21760T8RK30 IN1530 17T21760T8RK30 IN1530

17T21760T8RK30 IN1530

Ingersoll
Артикул: 6498769
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
6 mm
BMC Body material code
H - Solid carbide
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiCN+TiN
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
21.7 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
SAI00800105
DN Neck diameter
12.7 mm
FamilyProducts
T-Slot cutter for O-ring grooves Z=4
GRDMFG Grade manufacturers designation
IN1530
HAND Cutting direction
R - Right
ID Technical product number
6498769
Interface codes
J6 /
ISYC Subclass
303-05 - T-slot end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI00800105
Name Identifying order number
17T21760T8RK30 IN1530
OAL Overall length
8 mm
RE Corner radius
3 mm
THSZMS Connection thread nominal size machine side
T8
Working process
No working processes available
WT Weight of item
0.02 kg
ZEFP Peripheral effective cutting edge count
4
