Главная Каталог продукции Toolunited 11 309-04 - Turning tool for OD grooving and parting QEED1212L13-SC

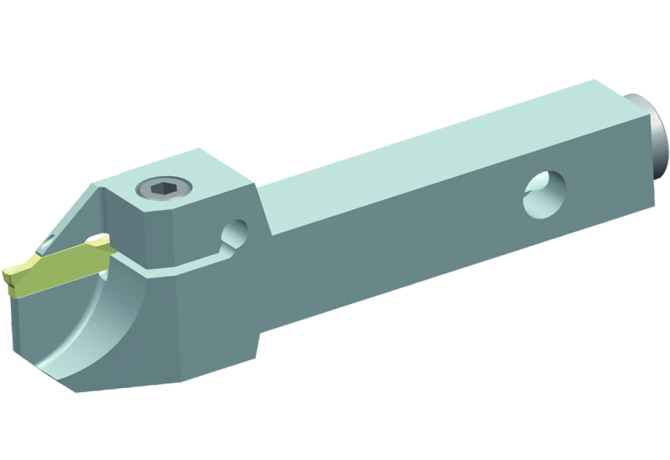

QEED1212L13-SC

QEED1212L13-SC

Артикул: QEED1212L13-SC

В наличии

В корзину

Описание

Характеристики

A2A SKJ Groove width Nominal dimension Pos.A

2.5 mm

BLDA SKJ Tool style code Position A

1

C5A SKJ Corner radius right Pos.A

0.3 mm

C6A SKJ Corner radius left Pos.A

0.3 mm

CDX Cutting depth maximum

13 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

ZCC - ZCC Cutting Tools

CW Cutting width

2.5 mm

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

VKT12120115

DIN CSW1

ZCC-Z ED

FamilyProducts

Parting & grooving tool holder (external)

HAND Cutting direction

L - Left

HF Functional height

12 mm

ID Identifying order number

QEED1212L13-SC

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

LF Functional length

110 mm

LOC-03 B Shank width

12 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

1212

LOC-03 H Shank height

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120115

MIID Master insert identification

ZTED02503

OAL Overall length

110 mm

STDDES Standard designation

QEED1212L13-SC

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

10.75 mm

Working process

DAA - Parting,DEA - Outer diameter grooving
