Главная Каталог продукции Toolunited 11 309-04 - Turning tool for OD grooving and parting QEAD1010R10-SC

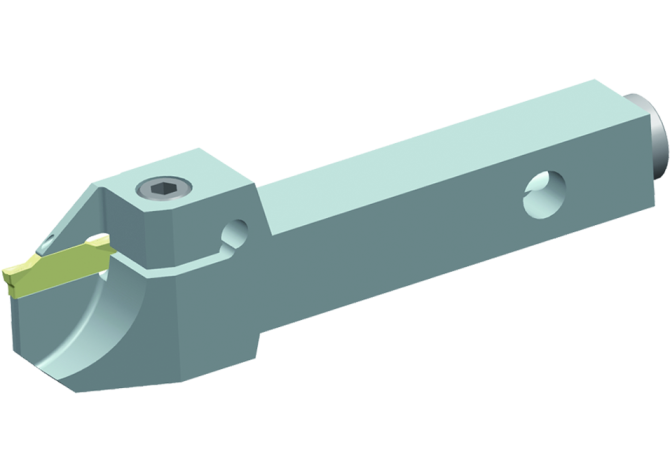

QEAD1010R10-SC

QEAD1010R10-SC

Артикул: QEAD1010R10-SC

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

10 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

ZCC - ZCC Cutting Tools

CW Cutting width

1.5 mm

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state

SF - Made to order

DIN

VKT10100115

DIN CSW1

ZCC-Z AD

FamilyProducts

Parting & grooving tool holder (external)

HAND Cutting direction

R - Right

HF Functional height

10 mm

ID Identifying order number

QEAD1010R10-SC

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-04 - Turning tool for OD grooving and parting

LF Functional length

125 mm

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Form

01

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

VKT Square mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

1010

LOC-03 H Shank height

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100115

MIID Master insert identification

Z*AD01502

OAL Overall length

125 mm

STDDES Standard designation

QEAD1010R10-SC

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

G - straight shank design

WF Functional width

9 mm

Working process

DAA - Parting,DEA - Outer diameter grooving
