Главная Каталог продукции Toolunited 11 309-04 - Turning tool for OD grooving and parting GYSR1616JX00-F13

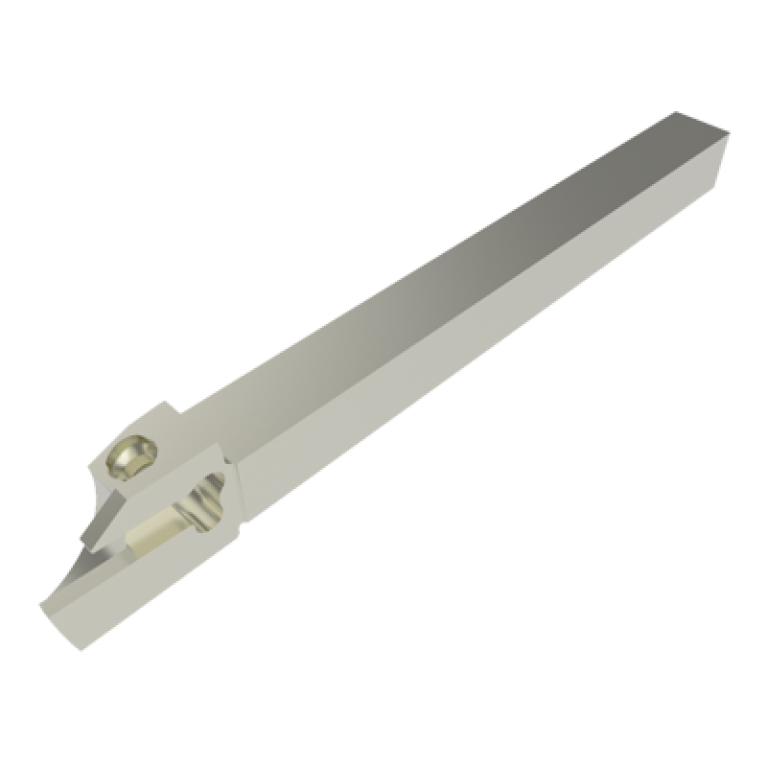

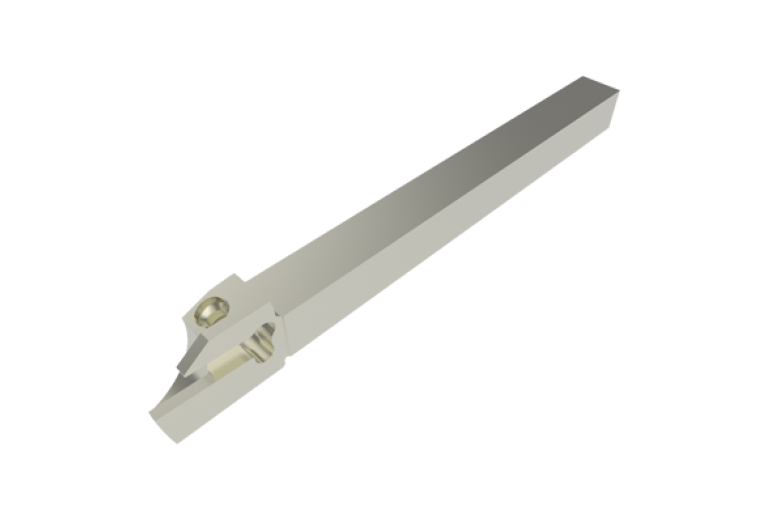

GYSR1616JX00-F13

GYSR1616JX00-F13 GYSR1616JX00-F13 GYSR1616JX00-F13

GYSR1616JX00-F13

Mitsubishi Materials
Артикул: 10630549
В наличии
В корзину
Описание
Характеристики

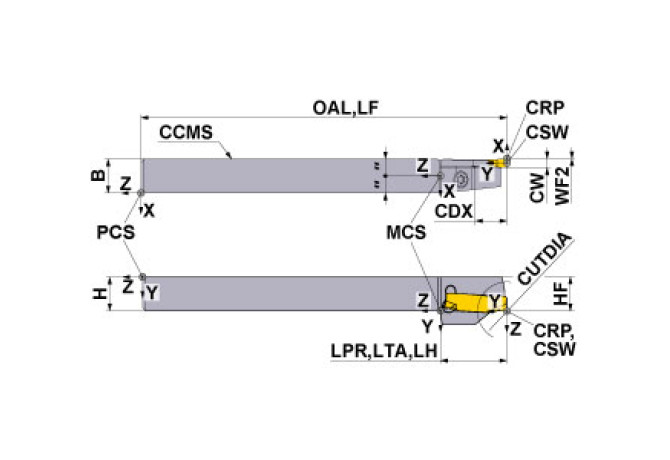

CDX Cutting depth maximum
13 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
4/1/2022
DIN
VKT16160105
FamilyProducts
spare parts
HAND Cutting direction
R - Right
HF Functional height
16 mm
ID Technical product number
10630549
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
VKT01A1616$$$$
ISO CSW1
MI$$GY3044**F*B****
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
LF Functional length
120 mm
LH Head length
25 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
16 mm
LOC-03 ISO
VKT01A1616$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
MIID Master insert identification
MI$$GY3044**F*B****,MI$$G
Name Identifying order number
GYSR1616JX00-F13
OAL Overall length
120 mm
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
Working process
No working processes available
