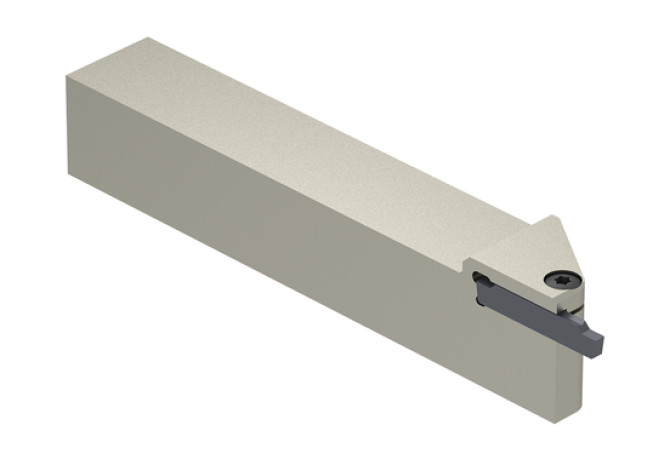

7082302500
7082302500
Артикул:
7082302500
В наличии
Характеристики
CDX Cutting depth maximum
5 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
COMPC Company code
CE - Ceratizit
DAXN Axial groove od min
10 mm
Delivery state valid from
10/1/2021
FamilyProducts
MSS STECHWERKZEUG AUSSEN AXIAL
Interface codes
/
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
LF Functional length
160 mm
LH Head length
28 mm
LOC-03 B Shank width
25 mm
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
Name Identifying order number
7082302500
OAL Overall length
160 mm
WF Functional width
23.7 mm
Working process
No working processes available
