Главная Каталог продукции Toolunited 11 201-01 - Triangle insert TPMT 110308 PC TT8125

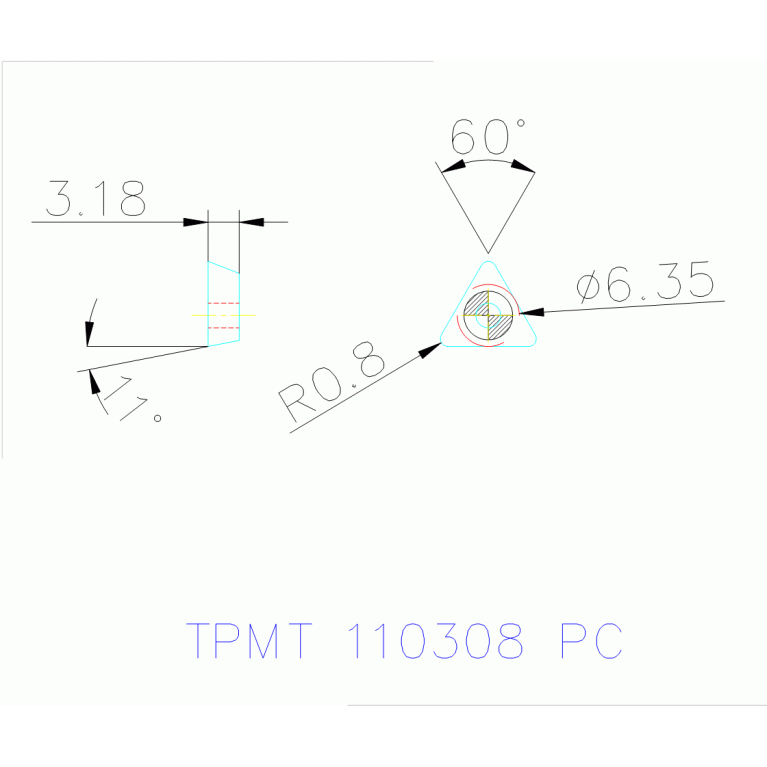

TPMT 110308 PC TT8125

Артикул: 5522478

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

TP1103083N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Positive 60° Insert - 11° clearance for medium roughing / steel

GRDMFG Grade manufacturers designation

TT8125

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5522478

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

9 mm

LE Cutting edge effective length

1.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103083N

Name Identifying order number

TPMT 110308 PC TT8125

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPMT110308

STDDESAnsi Standard designation ANSI

TPMT222

TCINS Tolerance class insert

Working process

No working processes available
