Главная Каталог продукции Toolunited 11 201-01 - Triangle insert TPMR 220408 TT8125

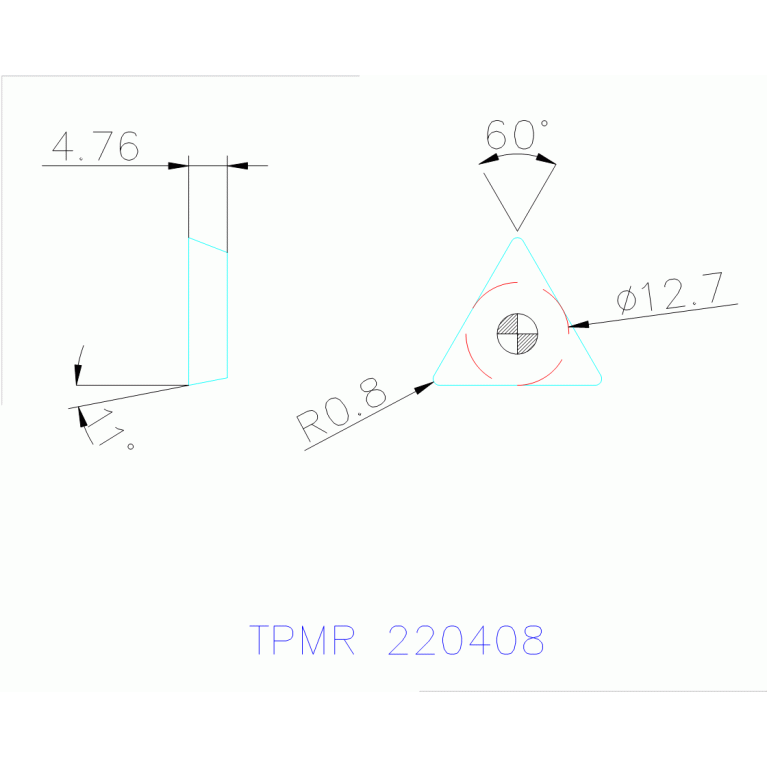

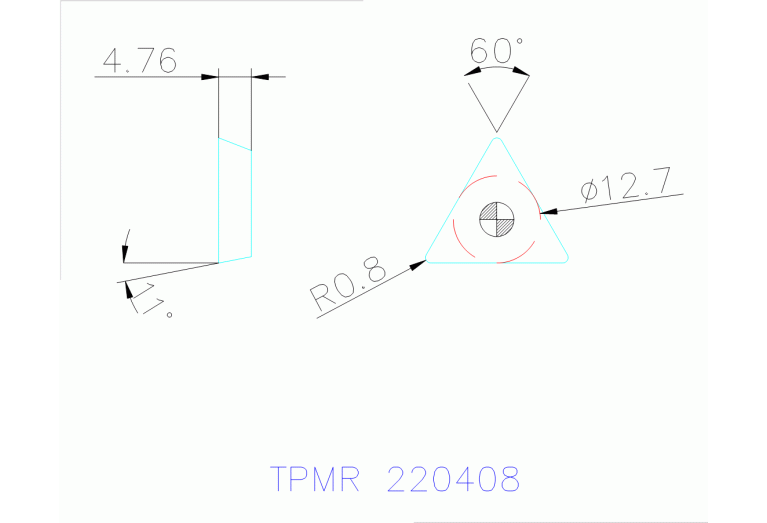

TPMR 220408 TT8125

Артикул: 5520171

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

TP2204081N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Chipbreaker, positive 11° clearance triangular inserts for medium machining

GRDMFG Grade manufacturers designation

TT8125

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5520171

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

20 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP2204081N

Name Identifying order number

TPMR 220408 TT8125

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TPMR220408

STDDESAnsi Standard designation ANSI

TPMR432

TCINS Tolerance class insert

Working process

No working processes available
