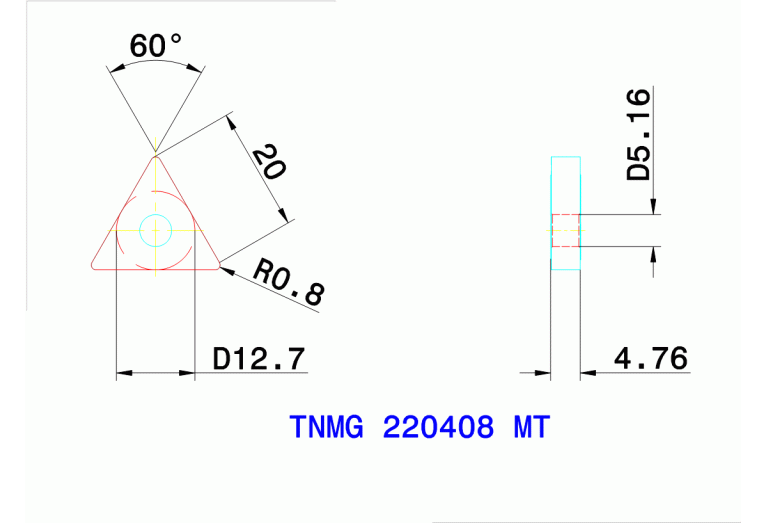

TNMG 220408 MT TT8020

Артикул: 5516439

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiCN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

TN2204082N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Negative 60° triangular inserts for medium roughing / tough rake angle

GRD2ND Standard designation of the grade 2nd application

M30-M50

GRD3RD Standard designation of the grade 3rd application

S30-S50

GRDMFG Grade manufacturers designation

TT8020

GRDPRIO Standard designation of the grade main application

P30-P50

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5516439

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

20 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN2204082N

Name Identifying order number

TNMG 220408 MT TT8020

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNMG220408

STDDESAnsi Standard designation ANSI

TNMG432

TCINS Tolerance class insert

Working process

No working processes available
