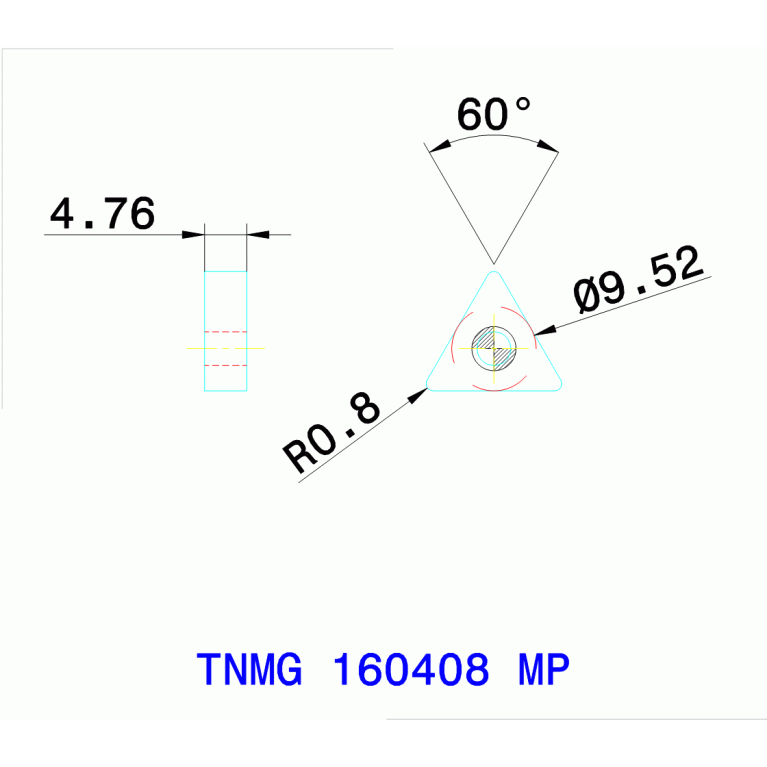

TNMG 160408 MP TT9080
TNMG 160408 MP TT9080
Артикул:
5522879
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
0 - Without chip breaker
COATN Coating
TiAlN+TiN
COMPC Company code
IL - Ingersoll
Delivery state
NL - Discontinued
DIN
TN1604082N
EPSR Insert included angle
60 Degree
FamilyProducts
insert, Negative 60° triangular inserts for medium machining / positive rake angle
GRD2ND Standard designation of the grade 2nd application
M20-M40
GRD3RD Standard designation of the grade 3rd application
S20-S40
GRDMFG Grade manufacturers designation
TT9080
GRDPRIO Standard designation of the grade main application
P20-P40
IC Inscribed circle diameter
9.52 mm
ID Technical product number
5522879
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
1
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
14.5 mm
LE Cutting edge effective length
1.5 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN1604082N
MIID Master insert identification
TNMG160408 TT9080
Name Identifying order number
TNMG 160408 MP TT9080
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
TNMG160408
STDDESAnsi Standard designation ANSI
TNMG332
TCINS Tolerance class insert
M
Working process
No working processes available
