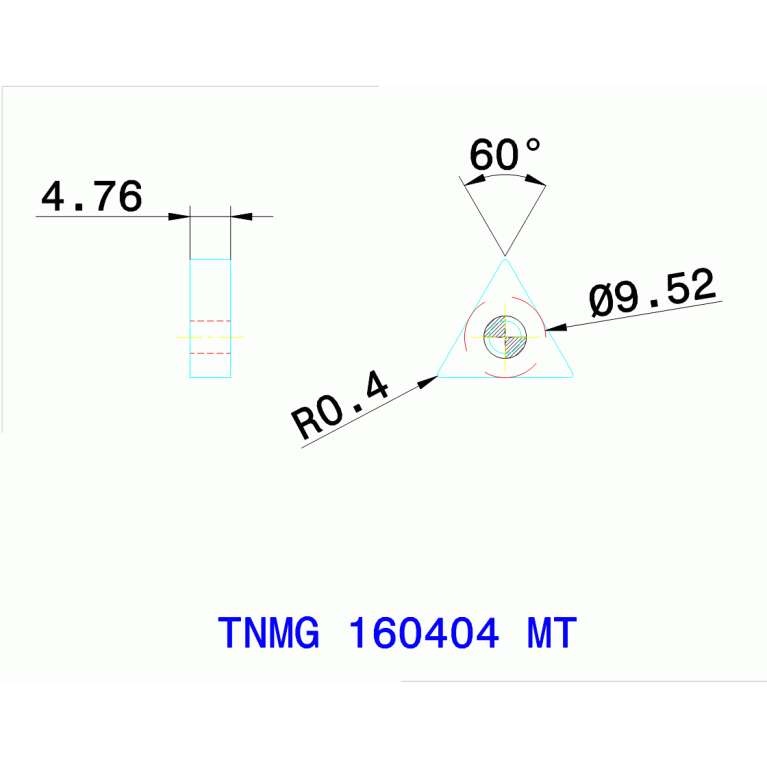

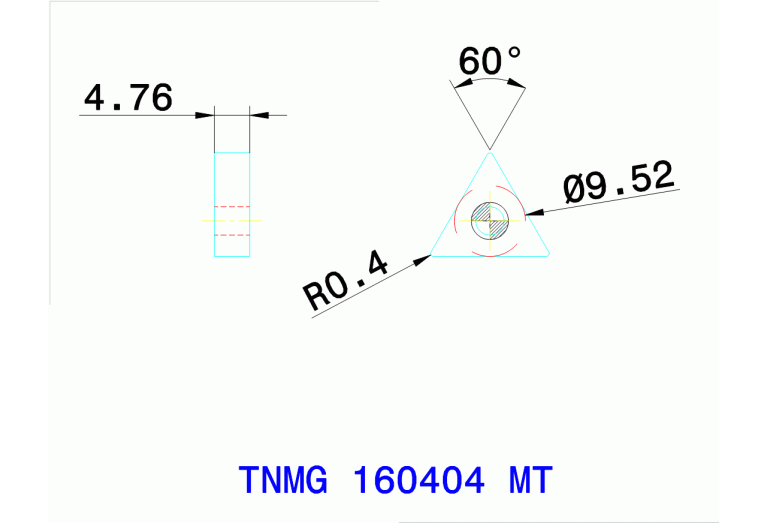

TNMG 160404 MT TT5080

Артикул: 5523062

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAlN+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

TN1604042N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Negative 60° triangular inserts for medium roughing / tough rake angle

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5523062

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

15.5 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604042N

MIID Master insert identification

TNMG160404 TT5080

Name Identifying order number

TNMG 160404 MT TT5080

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNMG160404

STDDESAnsi Standard designation ANSI

TNMG331

TCINS Tolerance class insert

Working process

No working processes available
