Главная Каталог продукции Toolunited 11 201-01 - Triangle insert TNMG 110308 TT8115

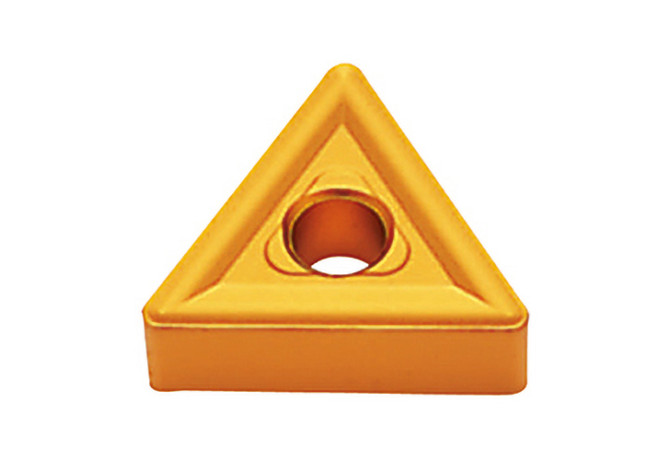

TNMG 110308 TT8115

Артикул: 5518749

В наличии

В корзину

Описание

Характеристики

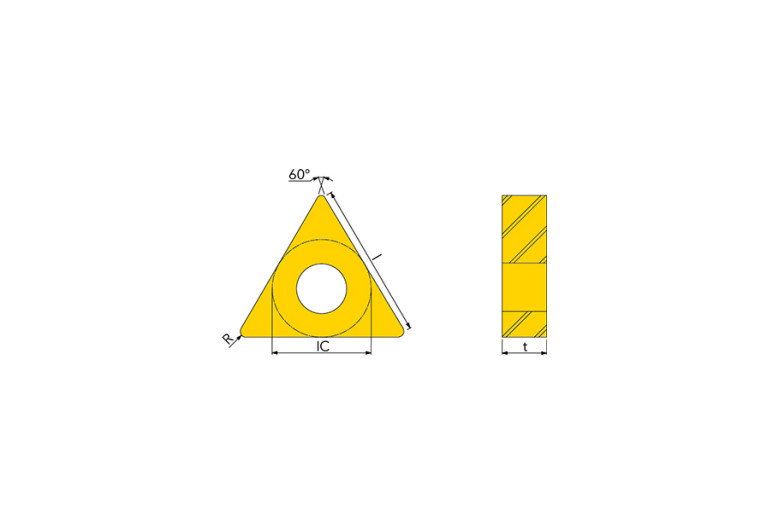

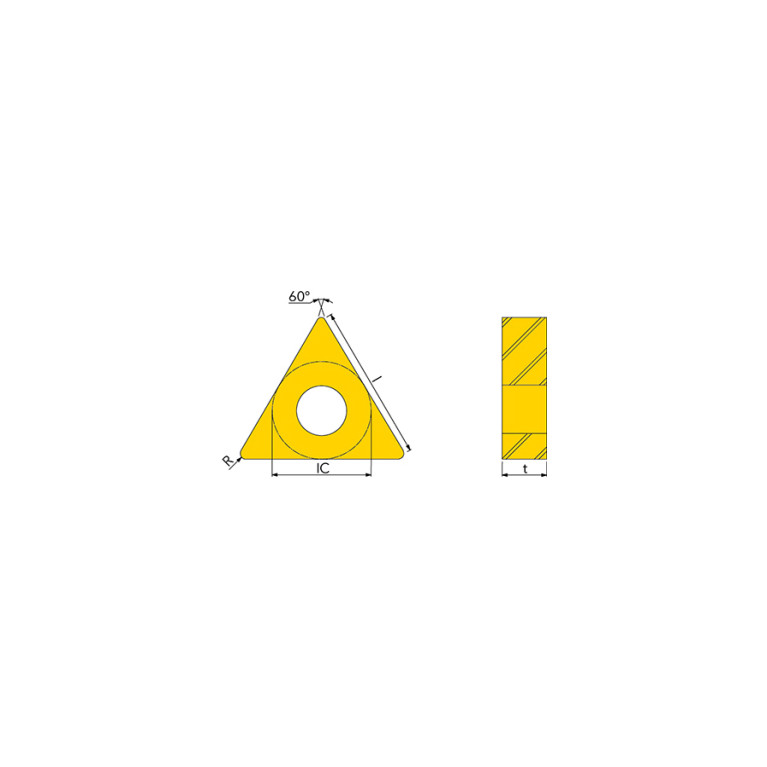

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

TN1103082N

EPSR Insert included angle

60 Degree

FamilyProducts

TNMG 110308

GRDMFG Grade manufacturers designation

TT8115

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5518749

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

9 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1103082N

Name Identifying order number

TNMG 110308 TT8115

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TNMG110308

STDDESAnsi Standard designation ANSI

TNMG222

TCINS Tolerance class insert

Working process

No working processes available
