TNGU2207PNTN IN2530

Артикул: 5813407

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

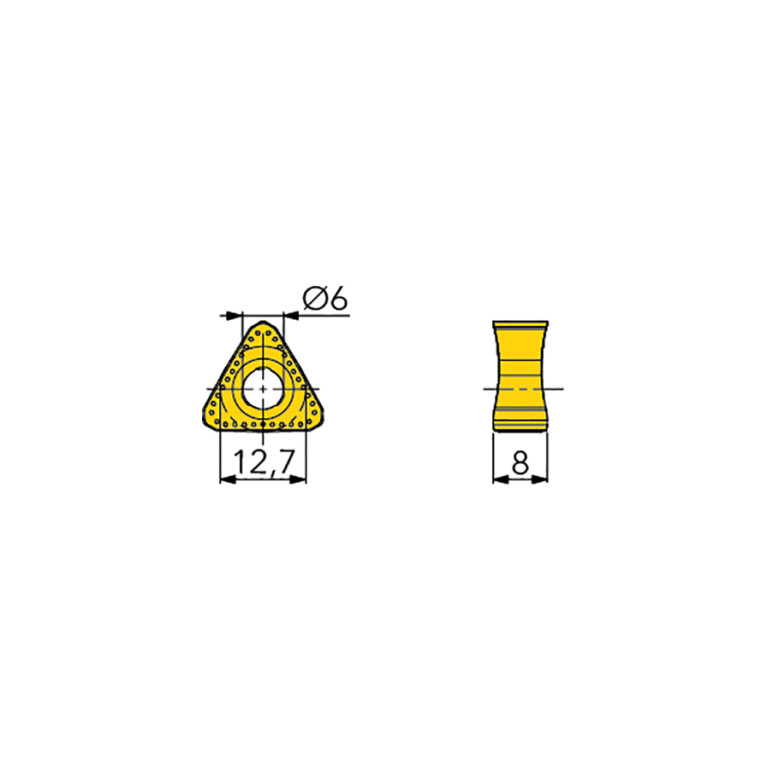

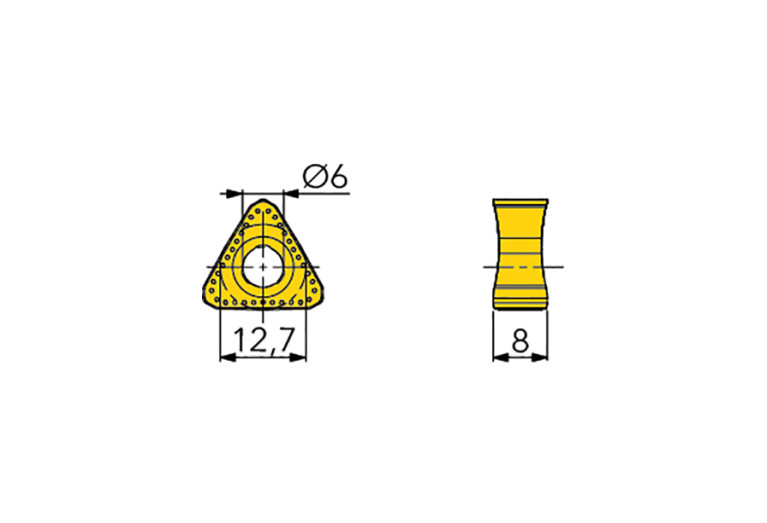

D1 Fixing hole diameter

6 mm

Delivery state

NL - Discontinued

DIN

TN2207 5N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, six-edged, positive geometry

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2530

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5813407

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

13.52 mm

LE Cutting edge effective length

15 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN2207 5N

Name Identifying order number

TNGU2207PNTN IN2530

RE Corner radius

0.8 mm

S Insert thickness

8 mm

S1 Insert thickness total

8 mm

STDDES Standard designation

TNGU2207PN

TCINS Tolerance class insert

Working process

No working processes available
