TCMT 16T304 MT CT3000

Артикул: 5801521

В наличии

В корзину

Описание

Характеристики

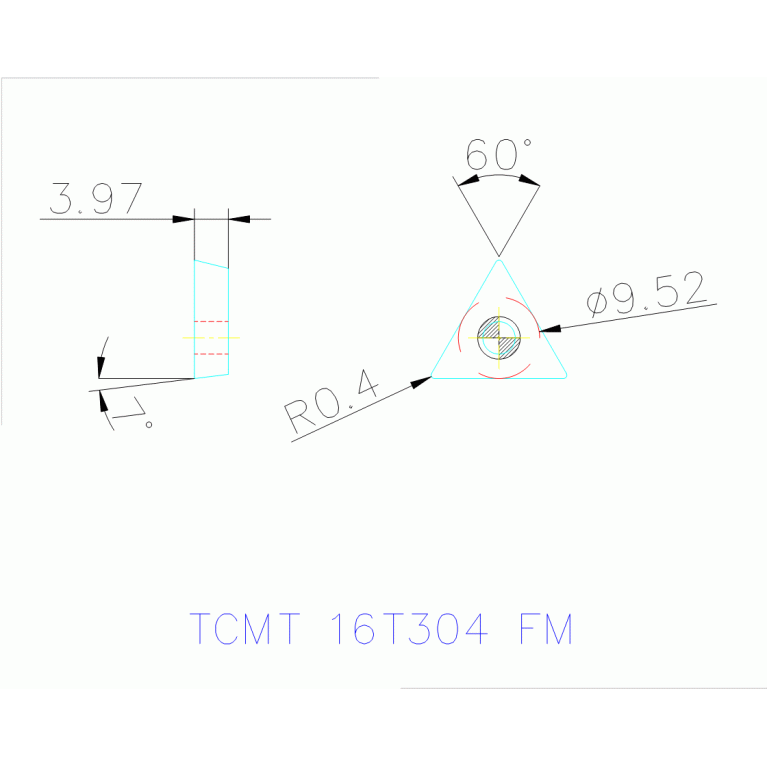

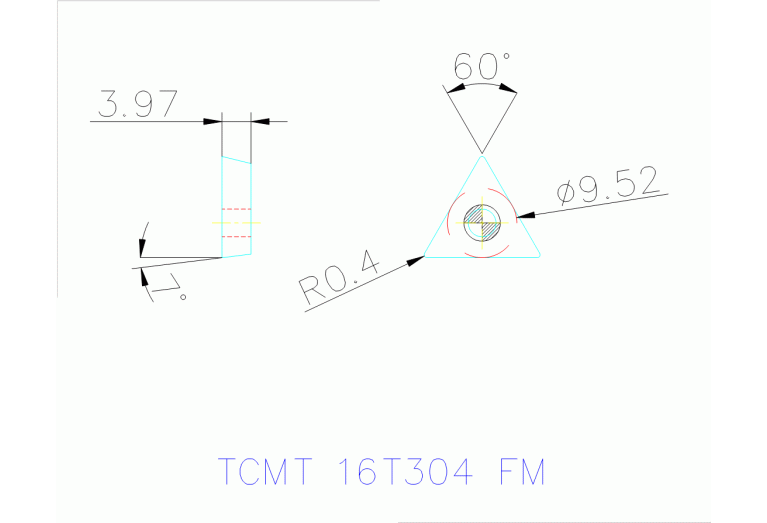

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

TC16T3043N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance triangular inserts for medium machining

GRD2ND Standard designation of the grade 2nd application

M10-M20

GRD3RD Standard designation of the grade 3rd application

K10-K20

GRDMFG Grade manufacturers designation

CT3000

GRDPRIO Standard designation of the grade main application

P10-P20

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5801521

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

15.5 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3043N

MIID Master insert identification

TCMT16T304 CT3000

Name Identifying order number

TCMT 16T304 MT CT3000

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCMT16T304

STDDESAnsi Standard designation ANSI

TCMT32.51

TCINS Tolerance class insert

Working process

No working processes available
