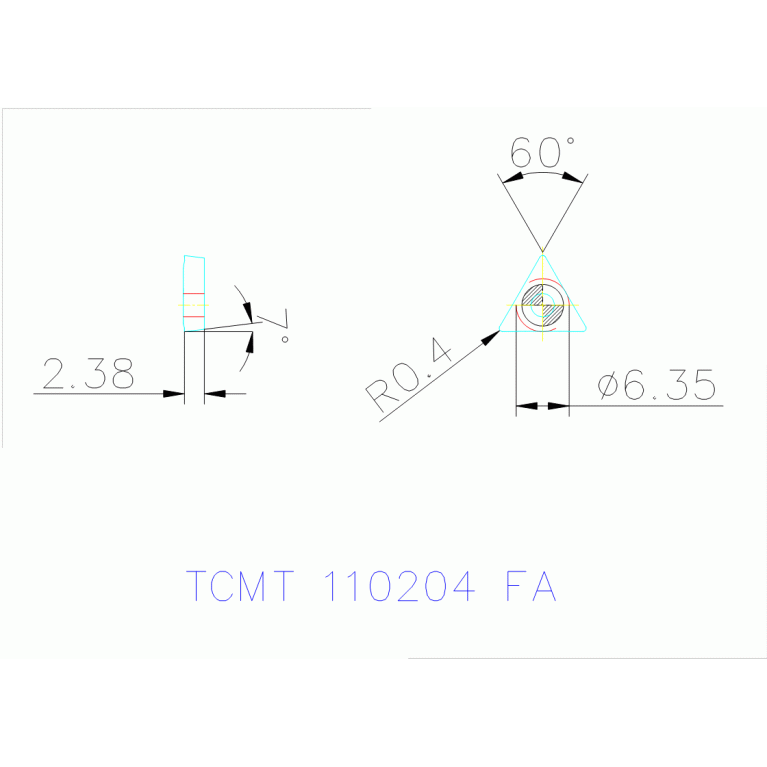

TCMT 110204 FA TT5100

Артикул: 5518117

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.8 mm

Delivery state

NL - Discontinued

DIN

TC1102043N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, Chipbreaker, positive 7° clearance triangular inserts for super finishing

GRD2ND Standard designation of the grade 2nd application

M20-M35

GRDMFG Grade manufacturers designation

TT5100

GRDPRIO Standard designation of the grade main application

P20-P35

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5518117

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LE Cutting edge effective length

0.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC1102043N

MIID Master insert identification

TCMT110204 TT5100

Name Identifying order number

TCMT 110204 FA TT5100

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TCMT110204

STDDESAnsi Standard designation ANSI

TCMT21.51

TCINS Tolerance class insert

Working process

No working processes available
