76138732

Артикул: 76138732

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-M50

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTCP135

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

10/1/2021

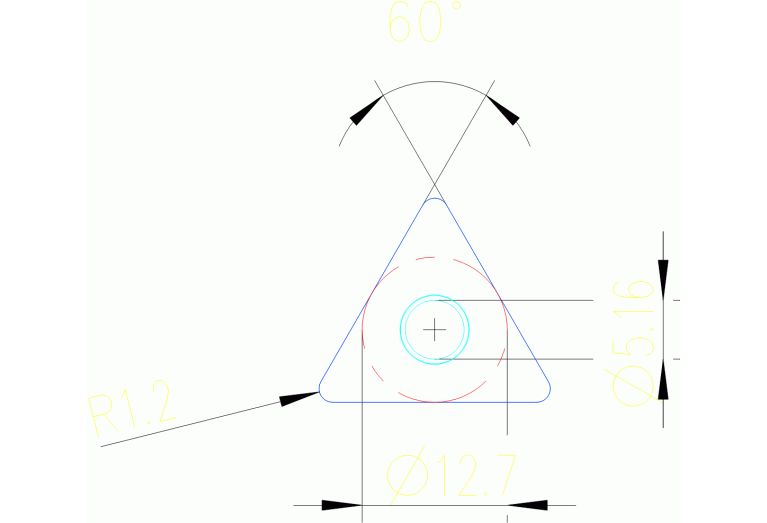

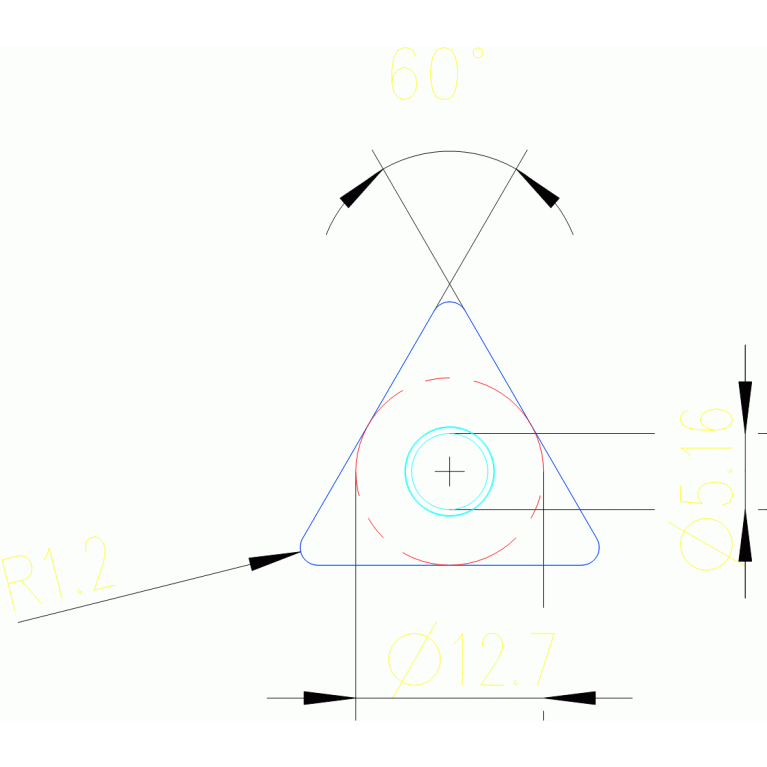

EPSR Insert included angle

60 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

12.7 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

22 mm

Name Identifying order number

76138732

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
