Главная Каталог продукции Toolunited 11 201-01 - Triangle insert 7521830400

7521830400

Артикул: 7521830400

В наличии

В корзину

Описание

Характеристики

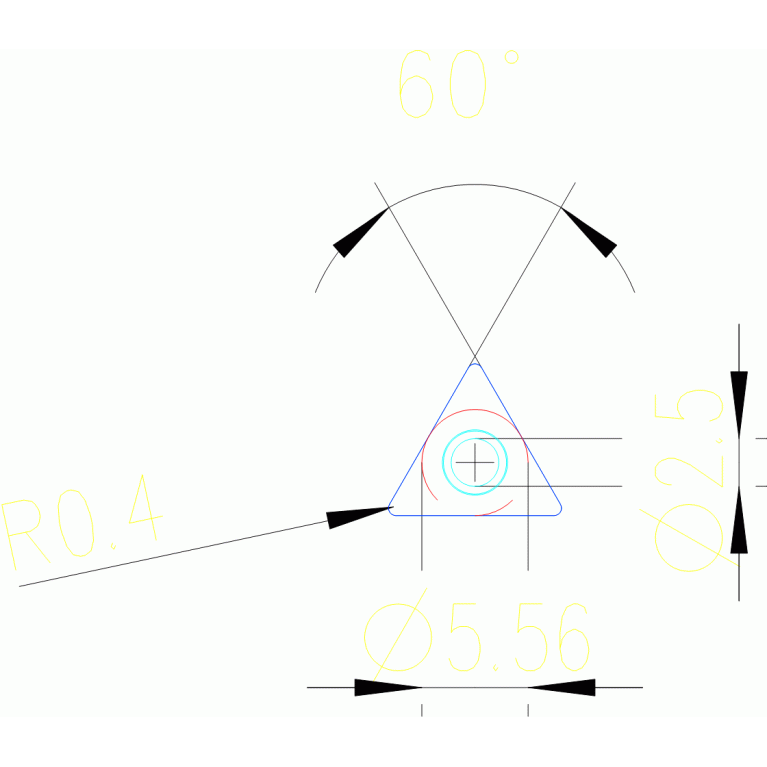

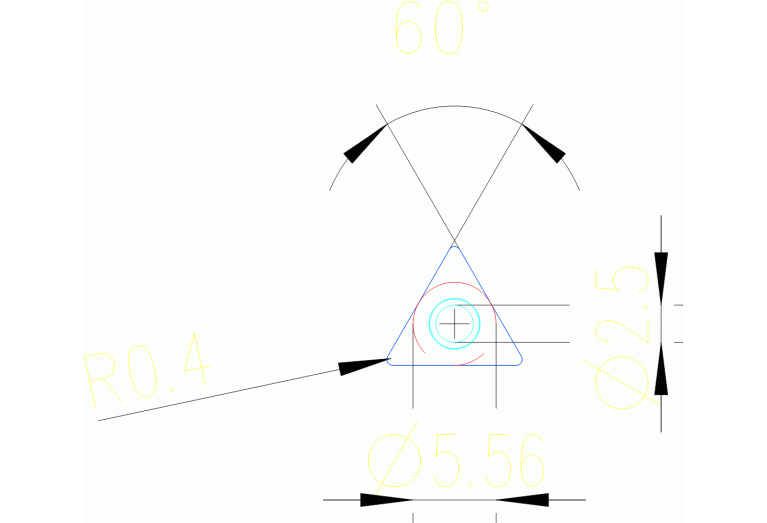

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-M55

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTCM130

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

2.5 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

60 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

5.56 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

9.6 mm

Name Identifying order number

7521830400

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

TCINS Tolerance class insert

Working process

No working processes available
