Главная Каталог продукции Toolunited 11 201-01 - Triangle insert 7521732800

7521732800

Артикул: 7521732800

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-M25

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTCM130

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

10/1/2021

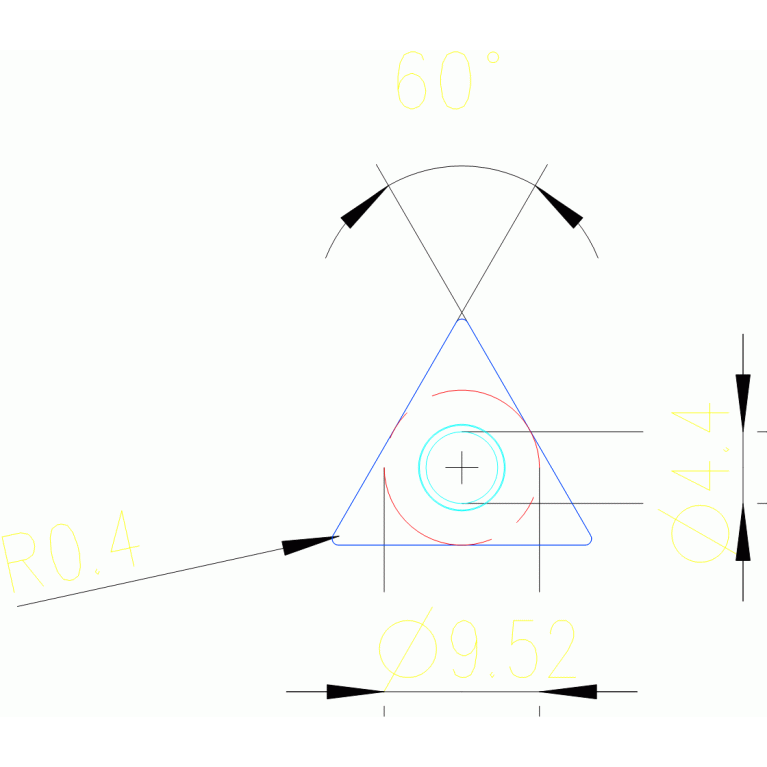

EPSR Insert included angle

60 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

Name Identifying order number

7521732800

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

TCINS Tolerance class insert

Working process

No working processes available
