7502112000
7502112000
Артикул:
7502112000
В наличии
Характеристики
CBMD Chip breaker manufacturers designation
-M60
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
CTCM120
COMPC Company code
CE - Ceratizit

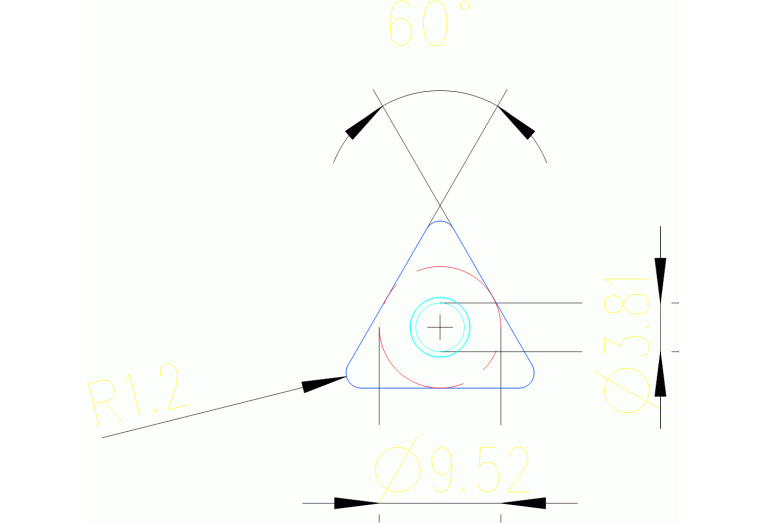

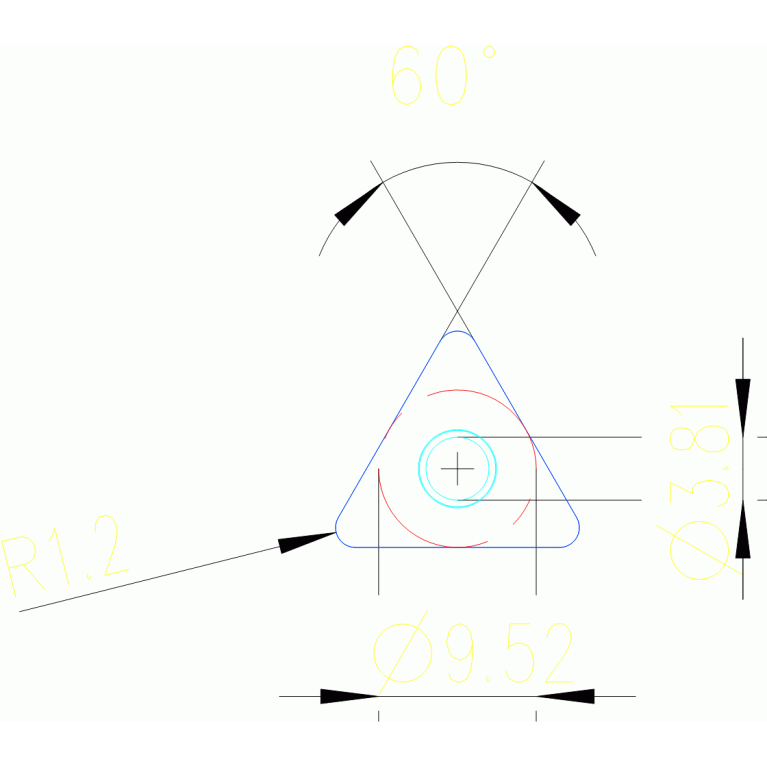

D1 Fixing hole diameter
3.81 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
60 Degree
FamilyProducts
HM-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
HC-M20
IC Inscribed circle diameter
9.52 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
16.5 mm
Name Identifying order number
7502112000
RE Corner radius
1.2 mm
S Insert thickness
4.76 mm
TCINS Tolerance class insert
M
Working process
No working processes available
