Главная Каталог продукции Toolunited 11 201-01 - Triangle insert 7500661800

7500661800

Артикул: 7500661800

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-M34

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTPX710

COMPC Company code

CE - Ceratizit

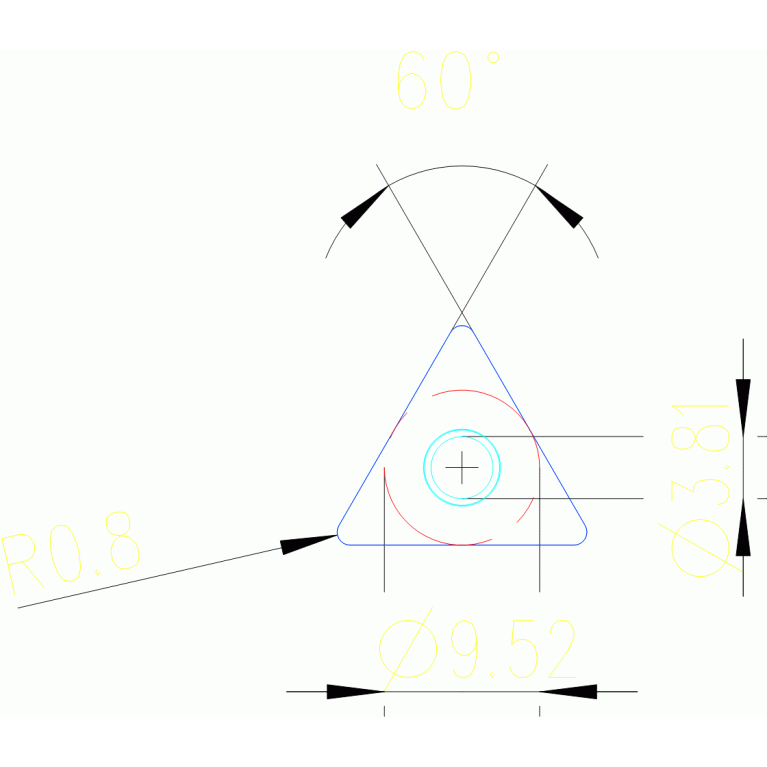

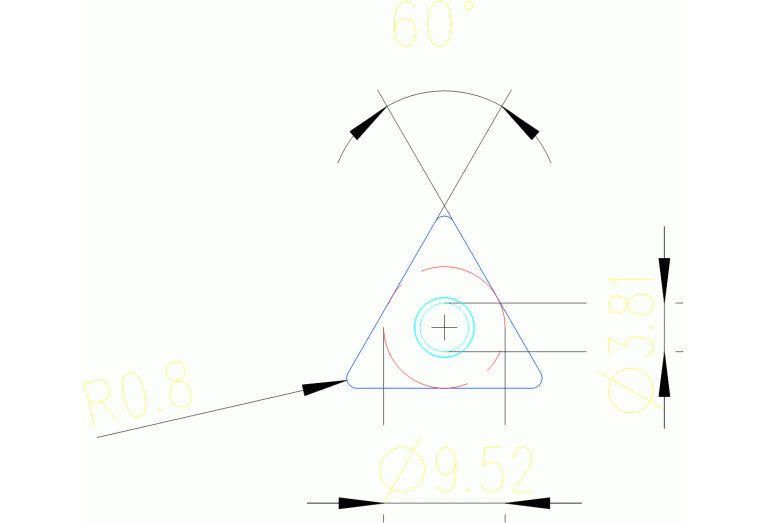

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

60 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-N20

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

Name Identifying order number

7500661800

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
