Главная Каталог продукции Toolunited 11 201-01 - Triangle insert 71404212

71404212

Артикул: 71404212

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

CTBH20C

COMPC Company code

CE - Ceratizit

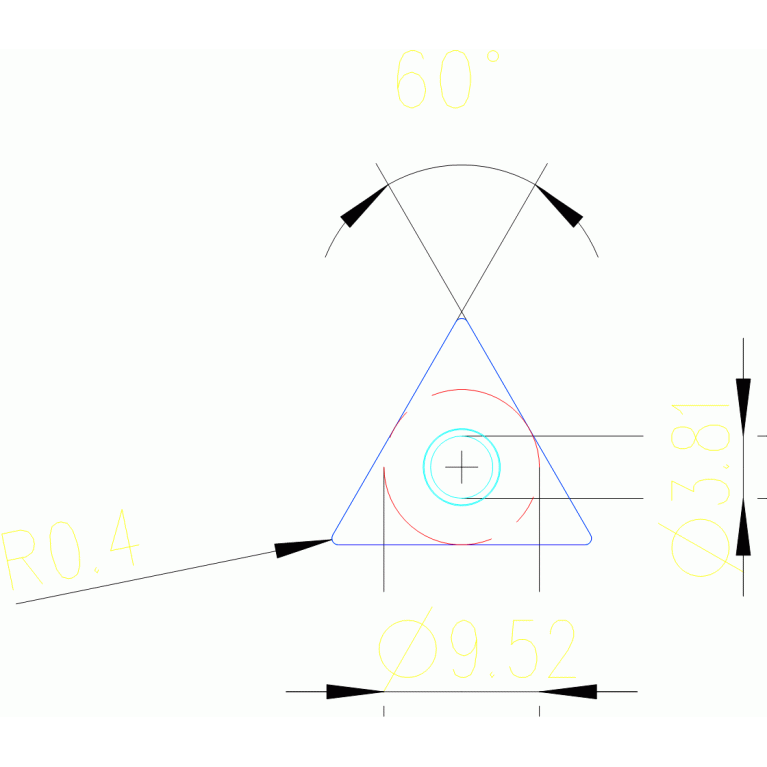

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

60 Degree

FamilyProducts

PCBN-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

BC-H20

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LE Cutting edge effective length

2.8 mm

Name Identifying order number

71404212

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
