Главная Каталог продукции Toolunited 11 201-01 - Triangle insert 71164153

71164153

Артикул: 71164153

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BN Face land width

0.16 mm

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTBS20C

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

10/1/2021

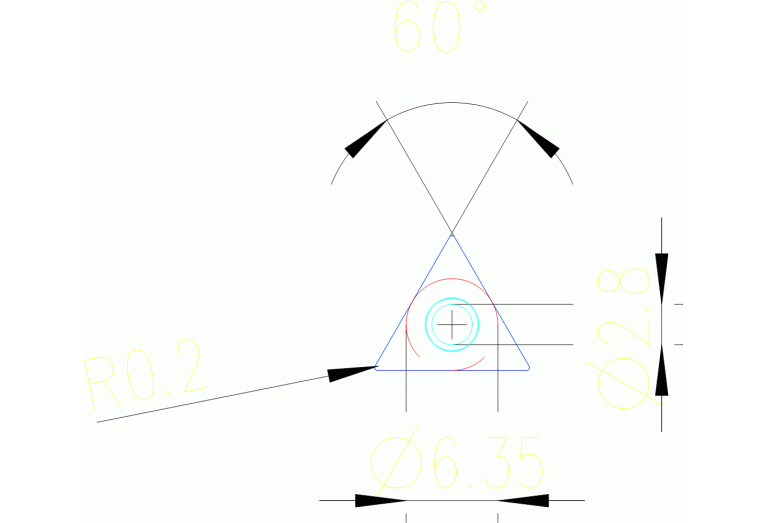

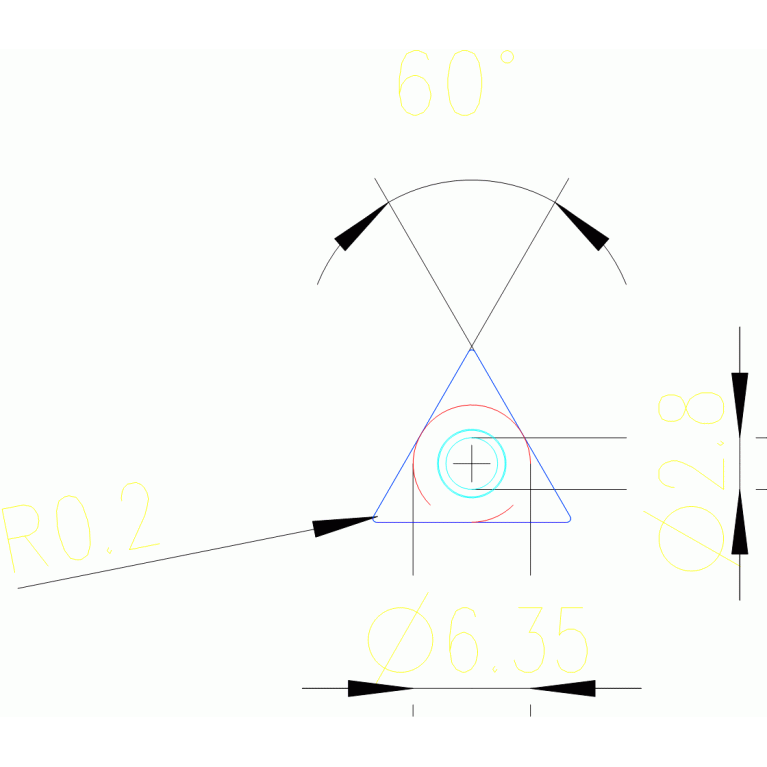

EPSR Insert included angle

60 Degree

FamilyProducts

PCBN-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

BC-S20

IC Inscribed circle diameter

6.35 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

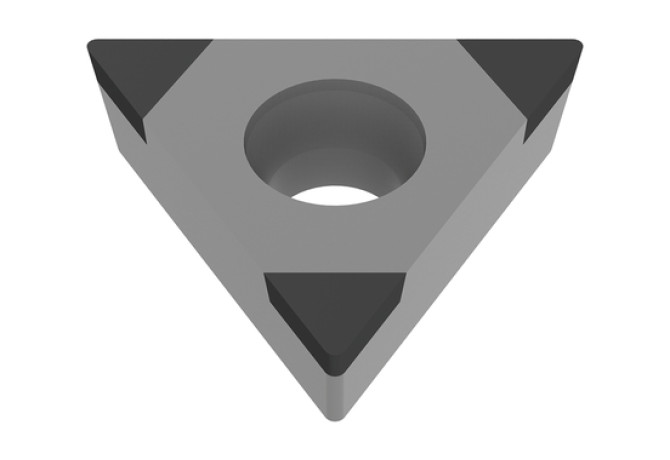

201-01 - Triangle insert

L Cutting edge length

11 mm

LE Cutting edge effective length

2.9 mm

Name Identifying order number

71164153

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
