71140302
71140302
Артикул:
71140302
В наличии
Характеристики

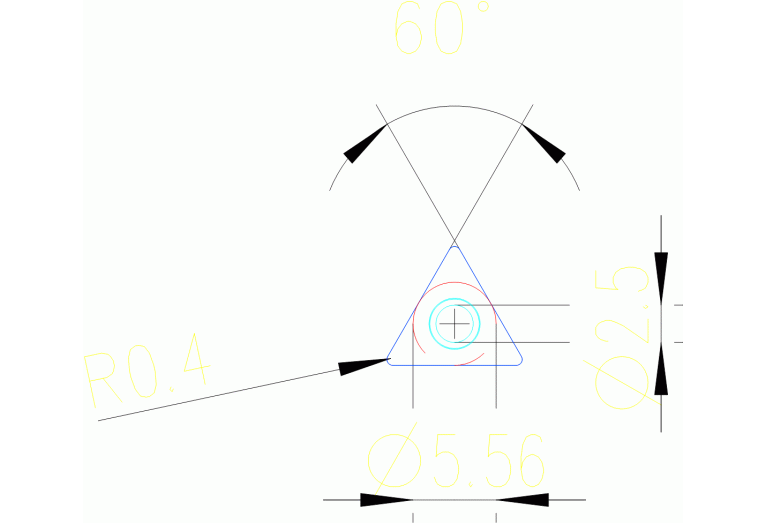

AN Clearance angle major
7 Degree
BN Face land width
0.12 mm
CECC Cutting edge condition code
T - Chamfered
COATN Coating
CTBS10U
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
2.5 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
60 Degree
FamilyProducts
PCBN-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
BH-S10
IC Inscribed circle diameter
5.56 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
9.6 mm
LE Cutting edge effective length
3.5 mm
Name Identifying order number
71140302
NOI Insert index count
1
RE Corner radius
0.4 mm
S Insert thickness
2.38 mm
TCE Tipped cutting edge code
A
TCINS Tolerance class insert
M
Working process
No working processes available
