71108802

Артикул: 71108802

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

CTBH40U

COMPC Company code

CE - Ceratizit

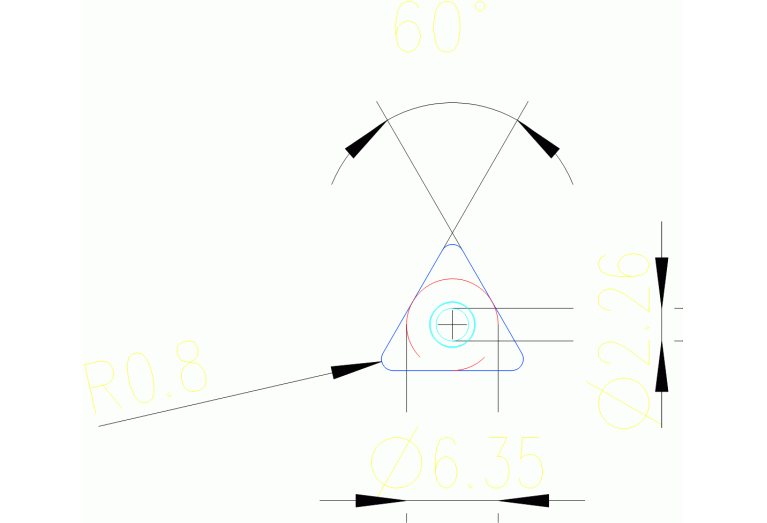

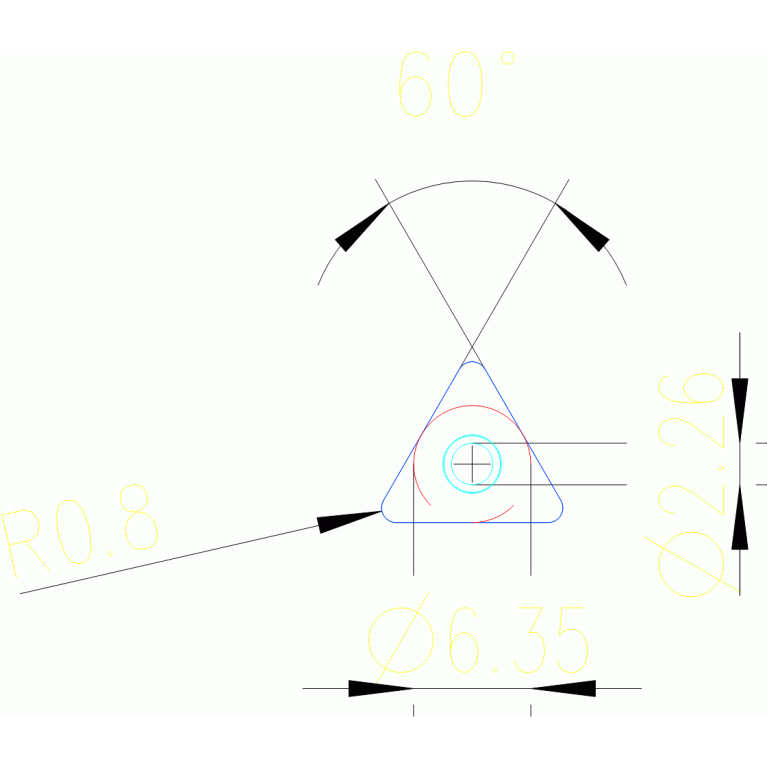

D1 Fixing hole diameter

2.26 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

60 Degree

FamilyProducts

PCBN-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

BL-H40

IC Inscribed circle diameter

6.35 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LE Cutting edge effective length

2.5 mm

Name Identifying order number

71108802

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
