Главная Каталог продукции Toolunited 11 201-01 - Triangle insert 70273752

70273752

Артикул: 70273752

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-SF

CECC Cutting edge condition code

E - Rounded

COATN Coating

TCC410

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

2.8 mm

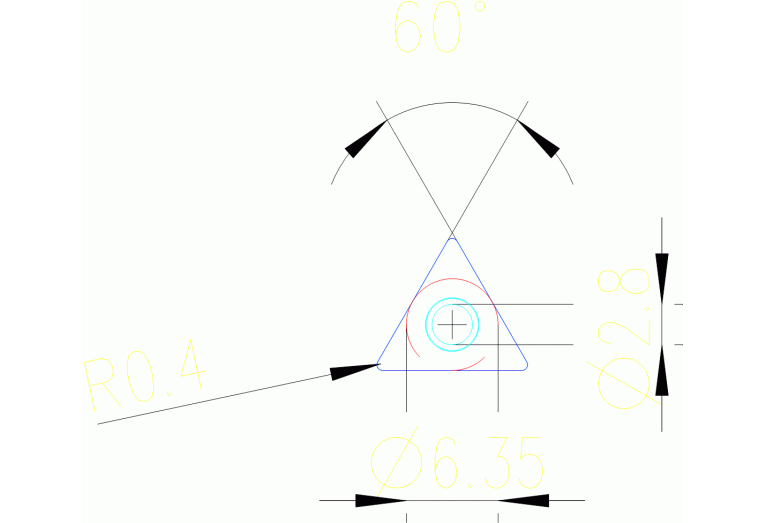

EPSR Insert included angle

60 Degree

FamilyProducts

CERMET-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HT-P10

IC Inscribed circle diameter

6.35 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

Name Identifying order number

70273752

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

TCINS Tolerance class insert

Working process

No working processes available
