Главная Каталог продукции Toolunited 11 201-01 - Triangle insert 70148408

70148408

Артикул: 70148408

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-M42

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTC2135

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

10/1/2021

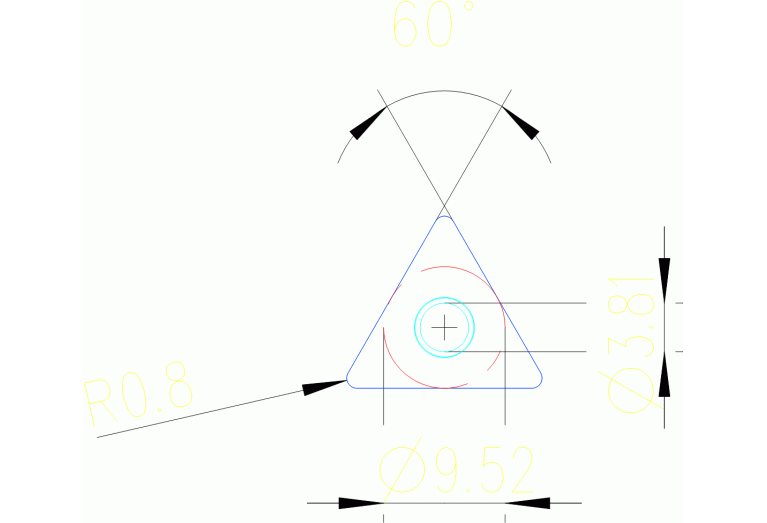

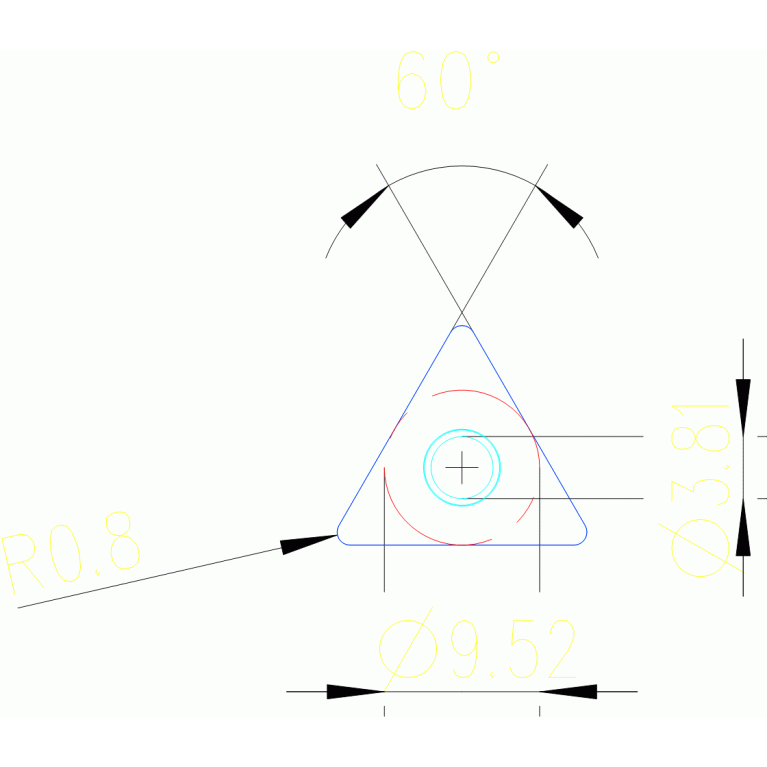

EPSR Insert included angle

60 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-S20

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

Name Identifying order number

70148408

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
