70145494
70145494
Артикул:
70145494
В наличии
Характеристики
CBMD Chip breaker manufacturers designation
-TMR
CECC Cutting edge condition code
E - Rounded
COATN Coating
CTC1135
COMPC Company code
CE - Ceratizit

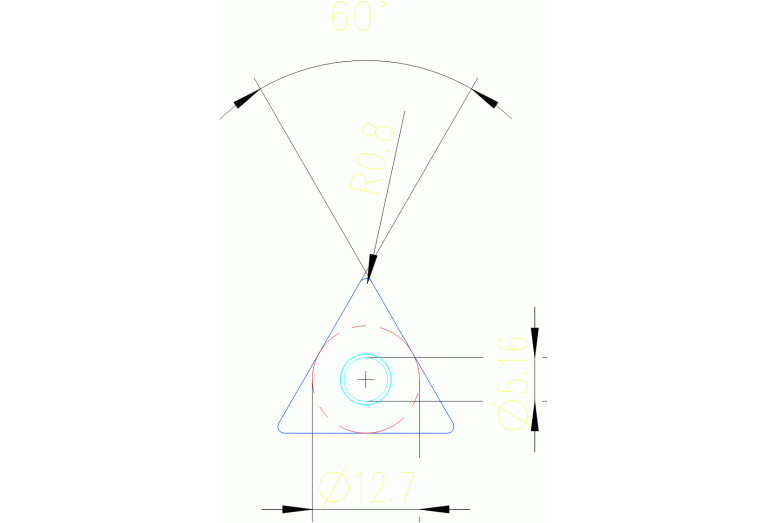

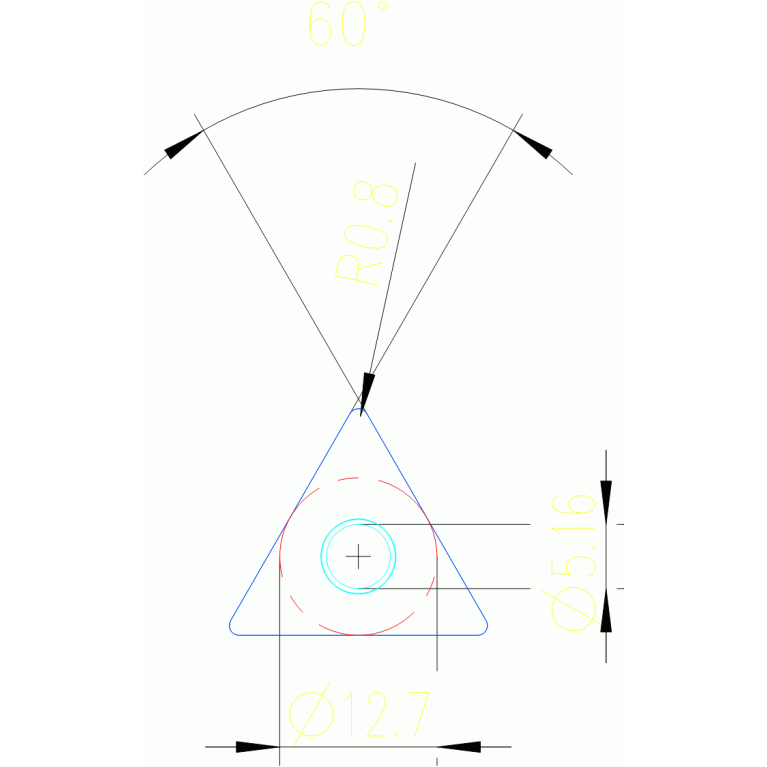

D1 Fixing hole diameter
5.16 mm
EPSR Insert included angle
60 Degree
FamilyProducts
HM-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
HC-P35
IC Inscribed circle diameter
12.7 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass

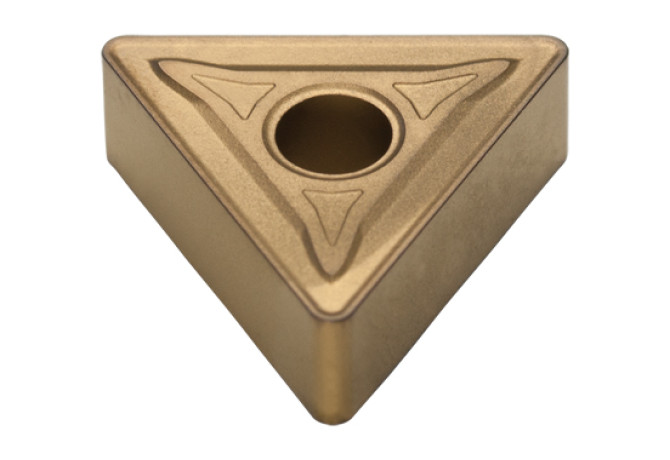

201-01 - Triangle insert
L Cutting edge length
22 mm
Name Identifying order number
70145494
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
TCINS Tolerance class insert
M
Working process
No working processes available
