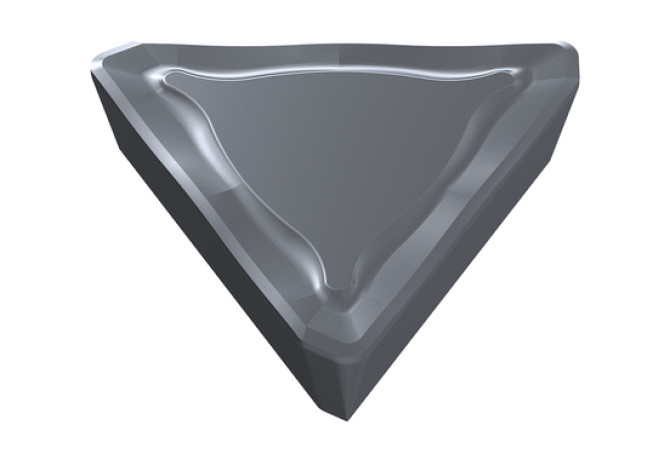

Главная Каталог продукции Toolunited 11 201-01 - Triangle insert 51069125

51069125

Артикул: 51069125

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

1.4 mm

CBMD Chip breaker manufacturers designation

-29

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTPP235

COMPC Company code

CE - Ceratizit

EPSR Insert included angle

60 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

12.7 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

20.7 mm

Name Identifying order number

51069125

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
