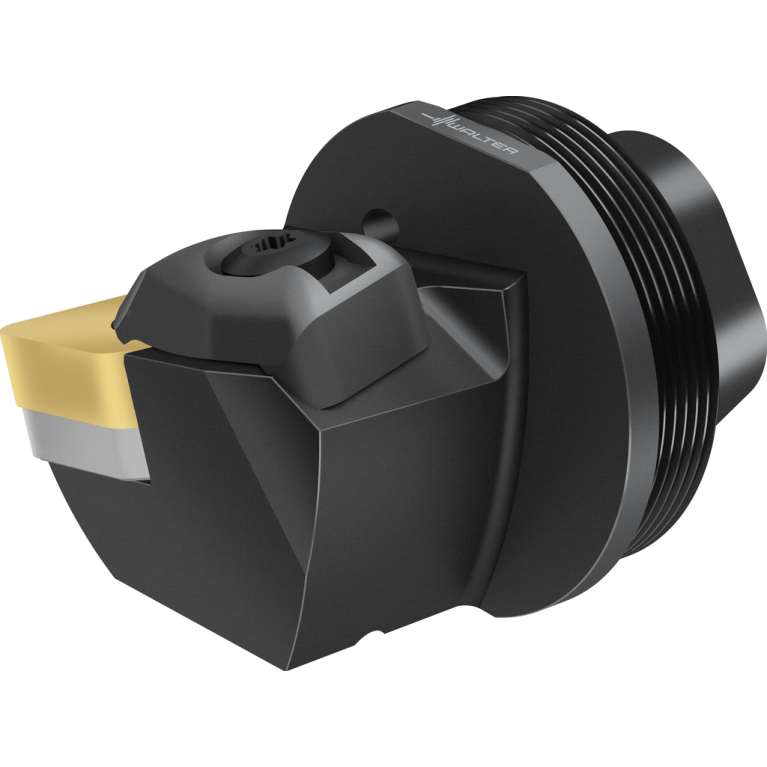

Q32-DDUNL-22032-11

Q32-DDUNL-22032-11 Q32-DDUNL-22032-11 Q32-DDUNL-22032-11 Q32-DDUNL-22032-11

Q32-DDUNL-22032-11

Walter
Артикул: 7956255
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SGL03200115
DIN CSW1
DN1104992N
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
55 Degree
FamilyProducts
Replaceable head – rigid clamping Q...-DDUN
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
7956255
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SGL01A0320$$$$
ISO CSW1
ISO$DN1104002******
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11.6 mm
LAMS Inclination angle
-10 Degree
LF Functional length
32 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SGL
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
SGL01A0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SGL03200115
LPR Protruding length
38.5 mm
LTA Length tool assembly
32 mm
MIID Master insert identification
DNMG 11 04 08
MTP Clamping type code
D
Name Identifying order number
Q32-DDUNL-22032-11
OAL Overall length
38.5 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
22 mm
Working process
DDI - Internal turning,DFI - Internal form turning
WT Weight of item
0.15 kg
