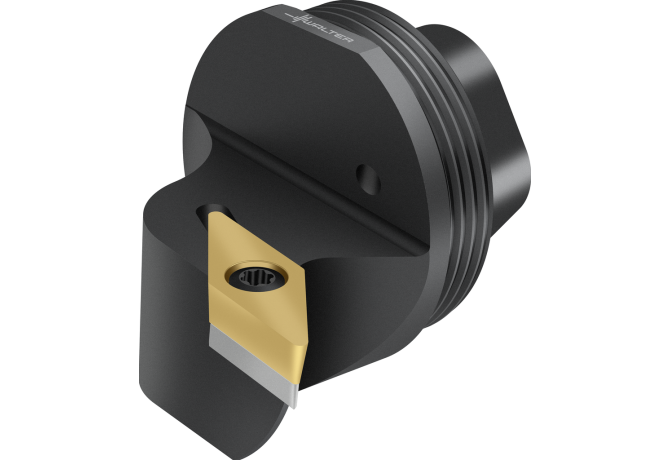

Q25-SVUBR-17020-11

Q25-SVUBR-17020-11 Q25-SVUBR-17020-11 Q25-SVUBR-17020-11 Q25-SVUBR-17020-11

Q25-SVUBR-17020-11

Walter
Артикул: 7956480
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
SGL02500115
DIN CSW1
VB1103993N
DMIN Minimum bore diameter
32 mm
EPSR Insert included angle
35 Degree
FamilyProducts
Replaceable head – screw clamping Q...-SVUB
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
7956480
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SGL01A0250$$$$
ISO CSW1
ISO$VB1103003******
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11 mm
LAMS Inclination angle
-4 Degree
LF Functional length
20 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SGL
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
SGL01A0250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SGL02500115
LPR Protruding length
25.5 mm
LTA Length tool assembly
20 mm
MIID Master insert identification
VBMT 11 03 04
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
Q25-SVUBR-17020-11
OAL Overall length
25.5 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
17 mm
Working process
DDI - Internal turning,DFI - Internal form turning
WT Weight of item
0.06 kg
