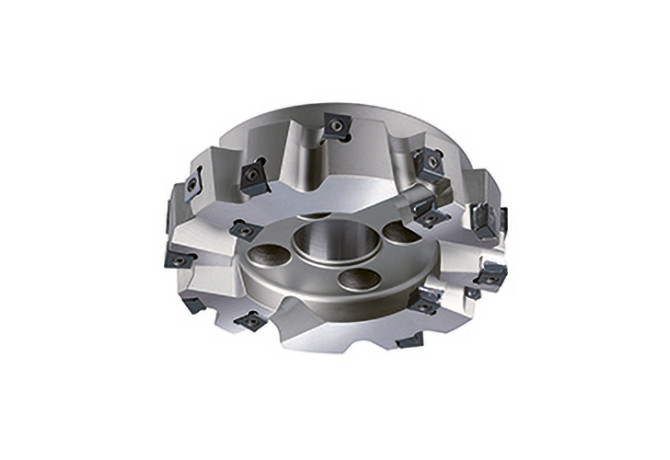

Главная Каталог продукции Toolunited 11 308-05 - Full-side slot milling cutter 3SR7H500044F7R00

3SR7H500044F7R00

3SR7H500044F7R00 3SR7H500044F7R00 3SR7H500044F7R00

3SR7H500044F7R00

Ingersoll
Артикул: 3060007
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
82 Degree
A1B Cutting edge angle major Pos. B
82 Degree
B1A Cutting edge length Pos. A
11.1 mm
B1B Cutting edge length Pos. B
11.1 mm
B2A Insert width Pos. A
12.56 mm
B2B Insert width Pos. B
12.56 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
8 mm
C1B Insert thickness Pos. B
8 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
54 mm
CICT Cutting item count
54
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
44 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
500 mm
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DHUB Hub diameter
221 mm
DIN
SPK06000500
FamilyProducts
Circular Boring Mill 3SR7
HAND Cutting direction
R - Right
ID Technical product number
3060007
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
DGM325-001
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-3442
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK06000500
Name Identifying order number
3SR7H500044F7R00
OAL Overall length
63 mm
Working process
No working processes available
WT Weight of item
47.882 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
11
