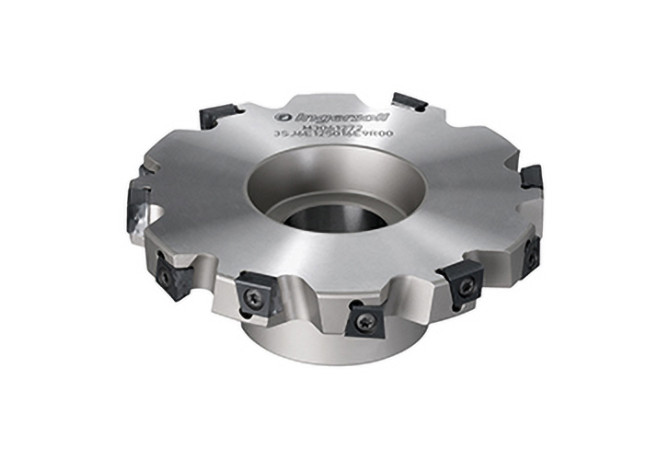

Главная Каталог продукции Toolunited 11 308-05 - Full-side slot milling cutter 3SJ6L100024F2R00

3SJ6L100024F2R00

3SJ6L100024F2R00 3SJ6L100024F2R00 3SJ6L100024F2R00

3SJ6L100024F2R00

Ingersoll
Артикул: 3078948
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
CCONMS Connection count machine side
1
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
24 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
47 mm
DIN
FDA02702200
FamilyProducts
3-Side Slot Mill 3SJ6...E/F
HAND Cutting direction
R - Right
ID Technical product number
3078948
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702200
Name Identifying order number
3SJ6L100024F2R00
OAL Overall length
45 mm
Working process
No working processes available
WT Weight of item
1.17 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
