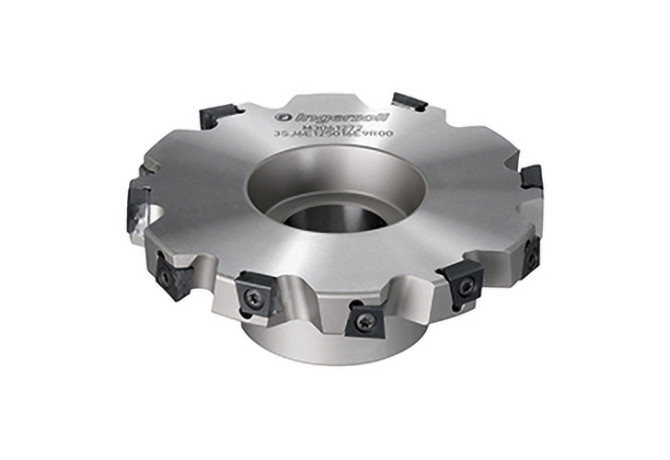

Главная Каталог продукции Toolunited 11 308-05 - Full-side slot milling cutter 3SJ6H160020E5R00

3SJ6H160020E5R00

3SJ6H160020E5R00 3SJ6H160020E5R00 3SJ6H160020E5R00

3SJ6H160020E5R00

Ingersoll
Артикул: 3078953
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
CCONMS Connection count machine side
1
CICT Cutting item count
14
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
20 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
160 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
70 mm
DIN
FDA04001200
FamilyProducts
3-Side Slot Mill 3SJ6...E/F
HAND Cutting direction
R - Right
ID Technical product number
3078953
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCFMS Connection code form
12
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA04001200
Name Identifying order number
3SJ6H160020E5R00
OAL Overall length
45 mm
Working process
No working processes available
WT Weight of item
2.57 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
