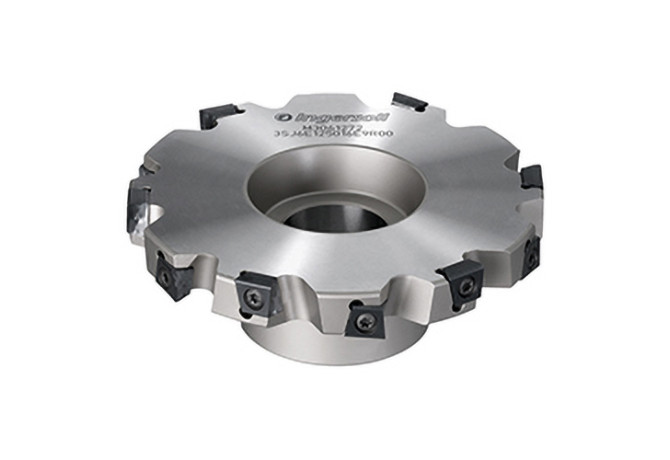

Главная Каталог продукции Toolunited 11 308-05 - Full-side slot milling cutter 3SJ6E250016F6R00

3SJ6E250016F6R00

3SJ6E250016F6R00 3SJ6E250016F6R00 3SJ6E250016F6R00

3SJ6E250016F6R00

Ingersoll
Артикул: 3078958
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A1B Cutting edge angle major Pos. B
80 Degree
B1A Cutting edge length Pos. A
8.9 mm
B1B Cutting edge length Pos. B
8.9 mm
B2A Insert width Pos. A
11.7 mm
B2B Insert width Pos. B
11.7 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
6.35 mm
C1B Insert thickness Pos. B
6.35 mm
CCONMS Connection count machine side
1
CICT Cutting item count
18
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
16 mm
CXSC Coolant exit style code
0 - Without coolant exit

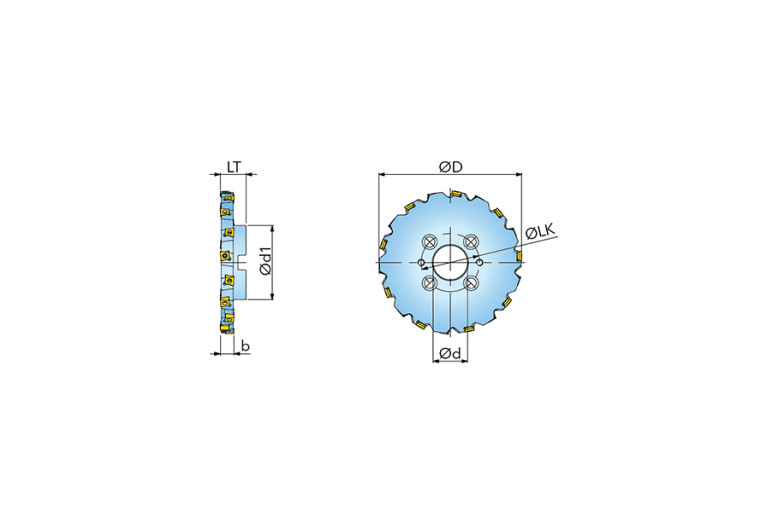

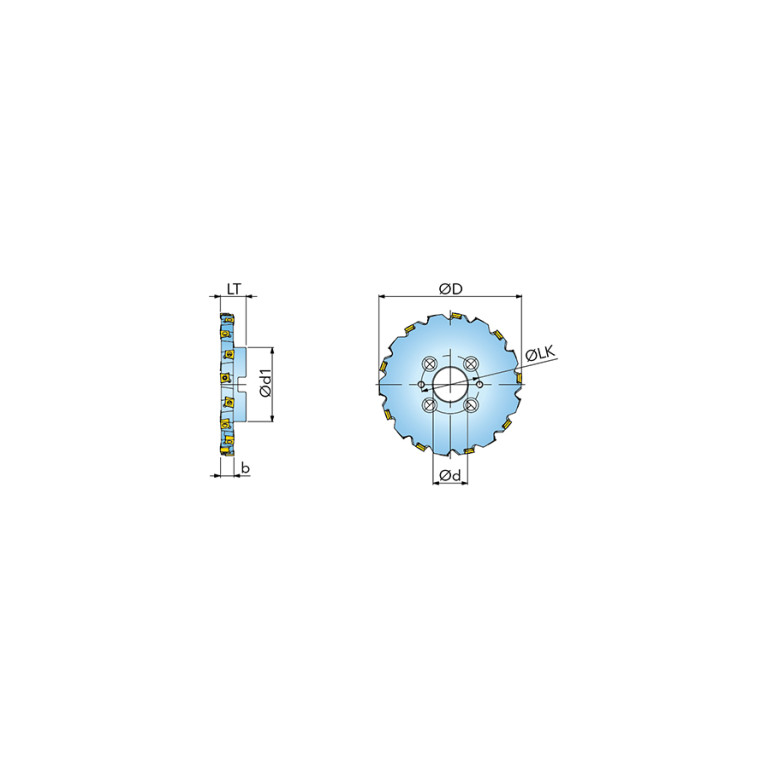

DC Cutting diameter
250 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
130 mm
DIN
SPK06000200
FamilyProducts
3-Side Slot Mill 3SJ6...E/F
HAND Cutting direction
R - Right
ID Technical product number
3078958
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK06000200
Name Identifying order number
3SJ6E250016F6R00
OAL Overall length
45 mm
Working process
No working processes available
WT Weight of item
6.14 kg
ZEFF Face effective cutting edge count
9
ZEFP Peripheral effective cutting edge count
9
