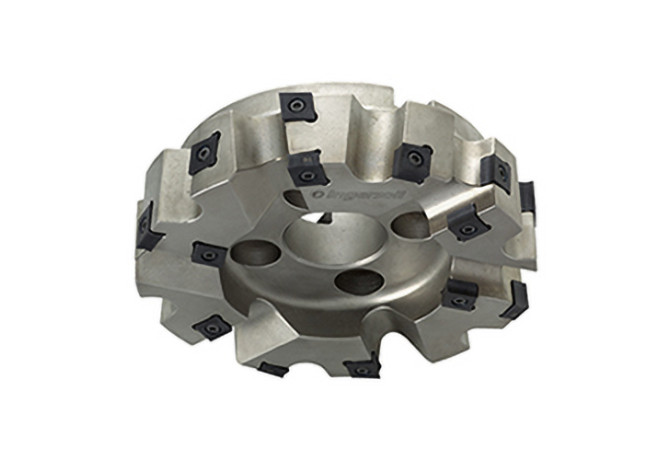

Главная Каталог продукции Toolunited 11 308-05 - Full-side slot milling cutter 36URR400040F7R00

36URR400040F7R00

36URR400040F7R00 36URR400040F7R00 36URR400040F7R00 36URR400040F7R00

36URR400040F7R00

Ingersoll
Артикул: 3063261
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A1B Cutting edge angle major Pos. B
80 Degree
B1A Cutting edge length Pos. A
11.7 mm
B1B Cutting edge length Pos. B
11.7 mm
B2A Insert width Pos. A
11.1 mm
B2B Insert width Pos. B
11.1 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
6.35 mm
C1B Insert thickness Pos. B
6.35 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
54 mm
CICT Cutting item count
46
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
40 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
400 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
221 mm
DIN
SPK06000500
FamilyProducts
Circular Boring Mill 36UR
HAND Cutting direction
R - Right
ID Technical product number
3063261
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0600
LOC-03 DCONMS Diameter
60 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK06000500
Name Identifying order number
36URR400040F7R00
OAL Overall length
63 mm
Working process
No working processes available
WT Weight of item
38 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
9
