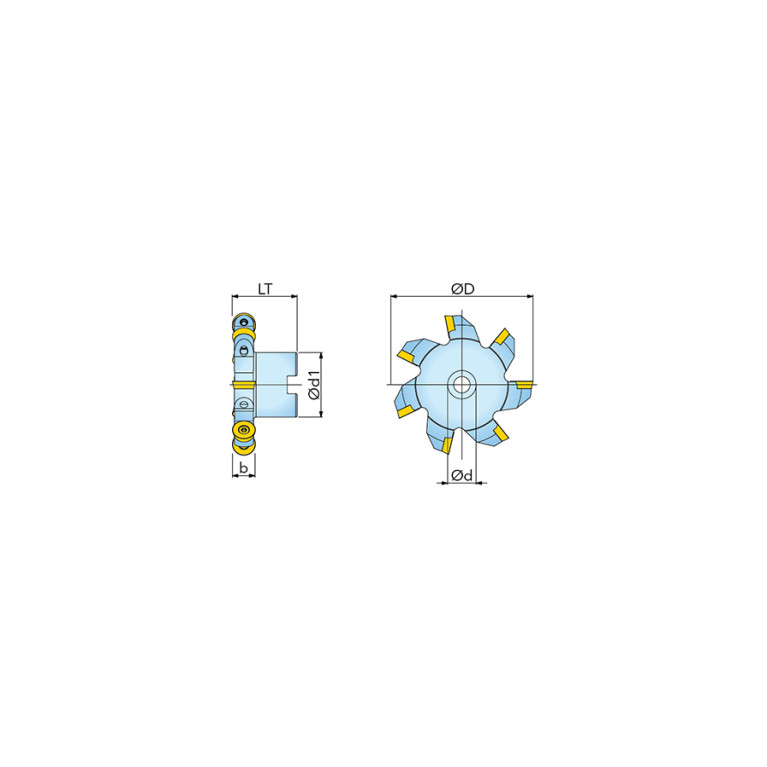

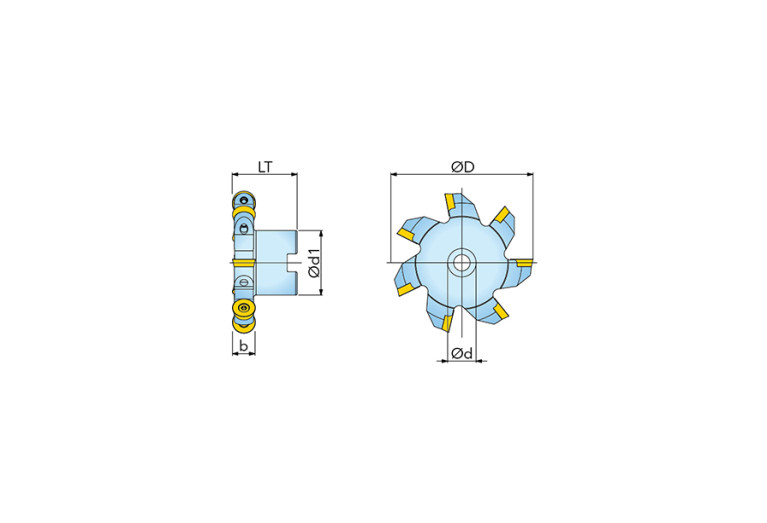

35B6K100016F2R00
35B6K100016F2R00
Артикул:
3058057
В наличии
Характеристики
BI Block index
1
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CWN Cutting width minimum
16 mm
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DHUB Hub diameter
45 mm
DIN
FDA02702200
FamilyProducts
Slot Mill 35B6K...F 16 mm cutting width
HAND Cutting direction
R - Right
ID Technical product number
3058057
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-05 - Full-side slot milling cutter
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
317
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IL-WSP-100
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
317
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-485
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702200
MIID Master insert identification
317
Name Identifying order number

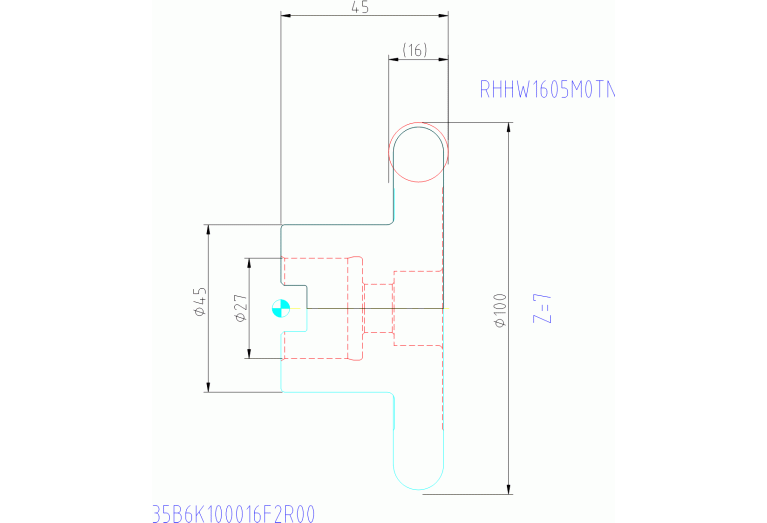

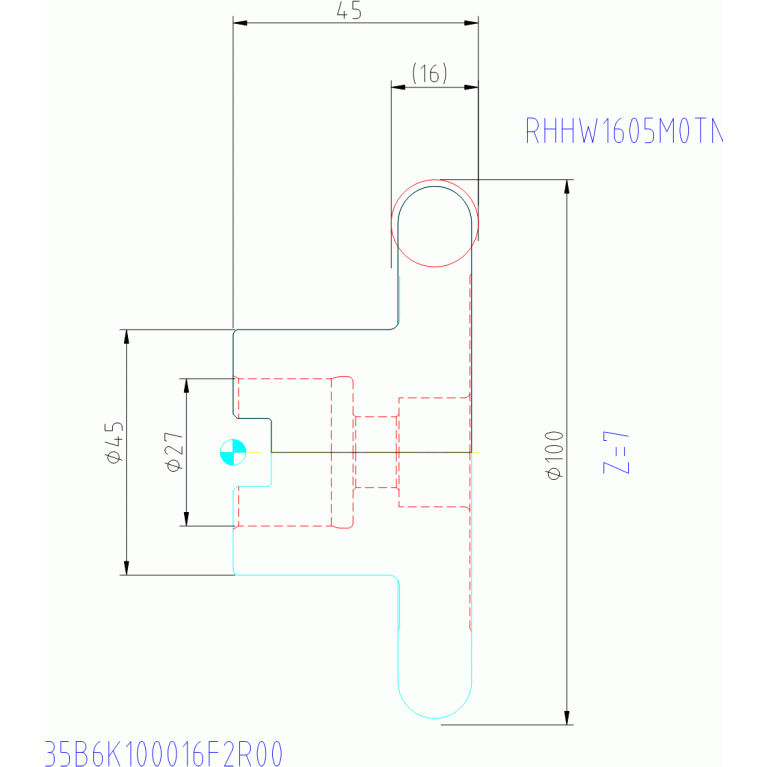

35B6K100016F2R00
OAL Overall length
45 mm
Working process
No working processes available
WT Weight of item
0.7 kg
ZEFP Peripheral effective cutting edge count
7
