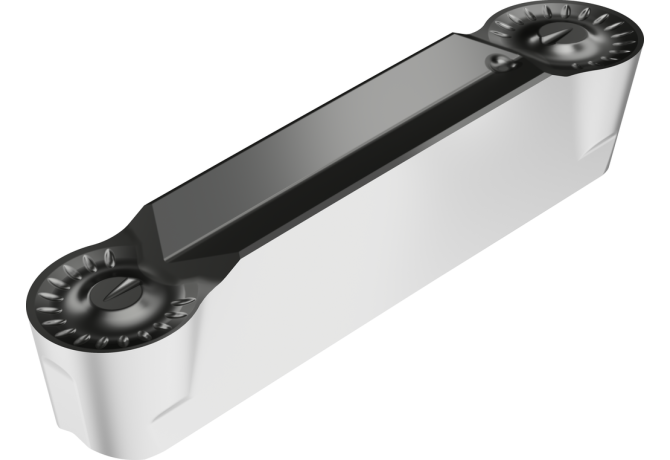

GX24-3E400N20-RF7 WSM23S

Артикул: 7934771

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

RF7

COATN Coating

TiAlN+Al2O3+(Al)

COMPC Company code

W - Walter

CRE Spot radius

2 mm

CW Cutting width

4 mm

Delivery state valid from

12/1/2023

DIN

W-GX2430407$$EX40

FamilyProducts

Grooving and copy turning – cutting inserts GX

GRDMFG Grade manufacturers designation

WSM23S

ID Technical product number

7934771

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

24 mm

Interface codes

J6 / J61

ISO

WR$$GX2430407$$EX40

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$GX2430407$$EX40

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-GX2430407$$EX40

Name Identifying order number

GX24-3E400N20-RF7 WSM23S

NOF Flute count

PFS Profile form

TCE Tipped cutting edge code

Working process

DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving

WT Weight of item

0.01 kg
