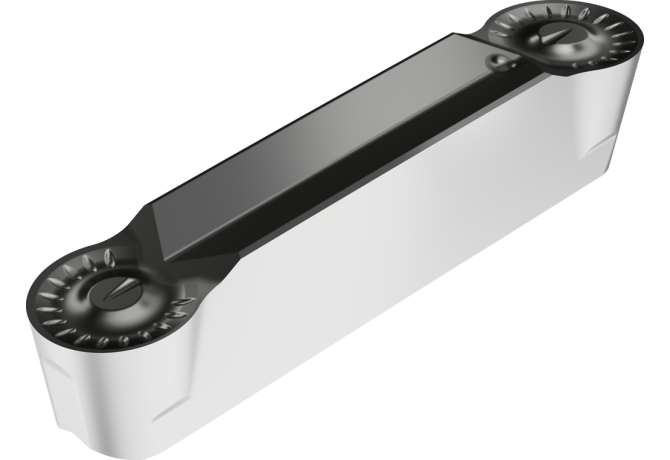

GX24-2E300N15-RF7 WSM13S
GX24-2E300N15-RF7 WSM13S
Артикул:
7934757
В наличии
Характеристики
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
RF7
COATN Coating
TiAlN+Al2O3+(Al)
COMPC Company code
W - Walter
CRE Spot radius
1.5 mm
CW Cutting width
3 mm
Delivery state valid from
12/1/2023
DIN
W-GX2420007$$EX$$
FamilyProducts
Grooving and copy turning – cutting inserts GX
GRDMFG Grade manufacturers designation
WSM13S
ID Technical product number
7934757
IFS Insert mounting style code
7 - Prismatic clamping, concave
IH Insert hand
N - Neutral
INSL Insert length
24 mm
Interface codes
J6 / J61
ISO
WR$$GX2420007$$EX$$
ISYC Subclass
202-03 - Insert, two cutting edges for grooving and parting, self clamping
LOC-03 ISO
WR$$GX2420007$$EX$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
W-GX2420007$$EX$$
Name Identifying order number
GX24-2E300N15-RF7 WSM13S
NOF Flute count
2
PFS Profile form
10
TCE Tipped cutting edge code
S
Working process
DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving
WT Weight of item
0.004 kg
