Главная Каталог продукции Toolunited 11 202-03 - Insert, two cutting edges for grooving and parting, self clamping DX18-3E300N15-RD4 WSM33S

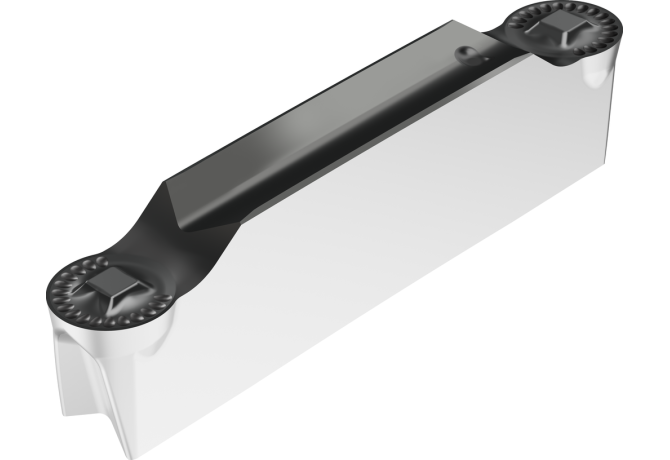

DX18-3E300N15-RD4 WSM33S

Артикул: 7910435

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

RD4

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiAlN+Al2O3+(Al)

COMPC Company code

W - Walter

CRE Spot radius

1.5 mm

CW Cutting width

3 mm

Delivery state valid from

12/1/2023

DIN

W-DX1830007$$EX$$

FamilyProducts

Grooving and copy turning – cutting inserts DX

GRDMFG Grade manufacturers designation

WSM33S

ID Technical product number

7910435

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

18.3 mm

Interface codes

J6 / J61

ISO

WR$$DX1830007$$EX$$

ISYC Subclass

202-03 - Insert, two cutting edges for grooving and parting, self clamping

LOC-03 ISO

WR$$DX1830007$$EX$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

W-DX1830007$$EX$$

Name Identifying order number

DX18-3E300N15-RD4 WSM33S

NOF Flute count

PFS Profile form

TCE Tipped cutting edge code

Working process

DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving

WT Weight of item

0.002 kg
