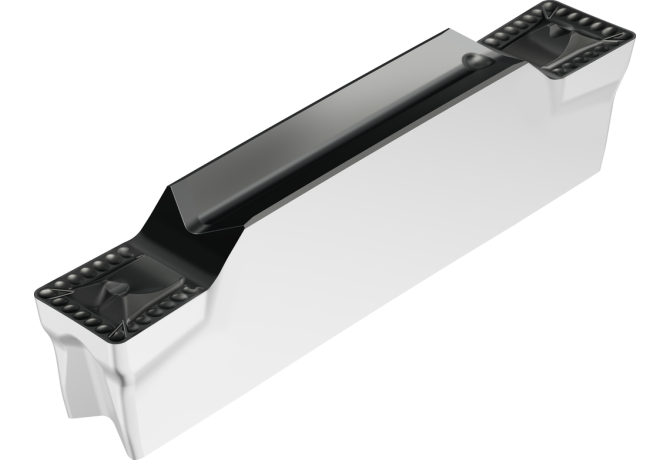

DX18-2E200N02-UD4 WSM33S
DX18-2E200N02-UD4 WSM33S
Артикул:
7910440
В наличии
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
UD4
CECC Cutting edge condition code
E - Rounded
COATN Coating
TiAlN+Al2O3+(Al)
COMPC Company code
W - Walter
CW Cutting width
2 mm
Delivery state valid from
12/1/2023
DIN
W-DX1820007$$EX$$
FamilyProducts
Grooving and recessing – cutting inserts DX
GRDMFG Grade manufacturers designation
WSM33S
ID Technical product number
7910440
IFS Insert mounting style code
7 - Prismatic clamping, concave
IH Insert hand
N - Neutral

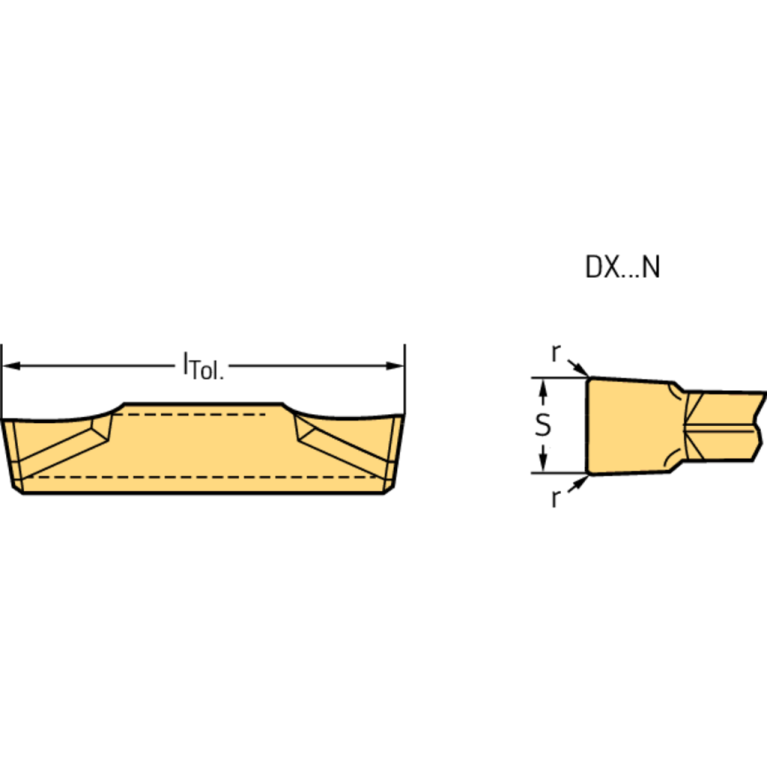

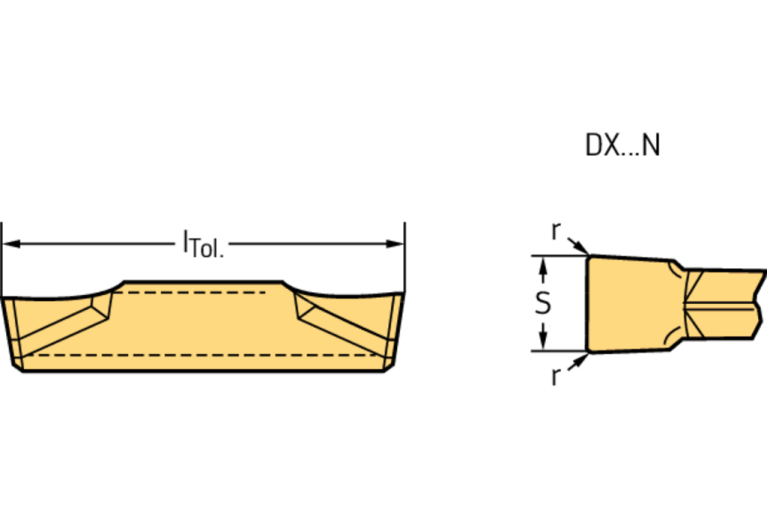

INSL Insert length
18 mm
Interface codes
J6 / J61
ISO
WR$$DX1820007$$EX$$
ISYC Subclass
202-03 - Insert, two cutting edges for grooving and parting, self clamping
LOC-03 ISO
WR$$DX1820007$$EX$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
W-DX1820007$$EX$$
Name Identifying order number
DX18-2E200N02-UD4 WSM33S
NOF Flute count
2
PFS Profile form
1
REL Corner radius left hand
0.2 mm
RER Corner radius right hand
0.2 mm
S Insert thickness
3.68 mm
S1 Insert thickness total
4.59 mm
TCE Tipped cutting edge code
S
W1 Insert width
1.7 mm
Working process
DDA - External turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving
WT Weight of item
0.002 kg
