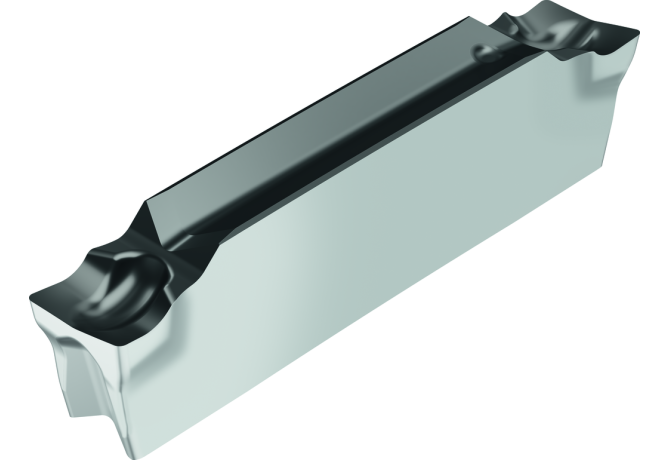

DX18-1E150R10-CF5 WSM33S
DX18-1E150R10-CF5 WSM33S
Артикул:
7910427
В наличии
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
CF5
CECC Cutting edge condition code
E - Rounded
COATN Coating
TiAlN+Al2O3+(Al)
COMPC Company code
W - Walter
CW Cutting width
1.5 mm
Delivery state valid from
12/1/2023
DIN
W-DX1815007$$EX$$
FamilyProducts

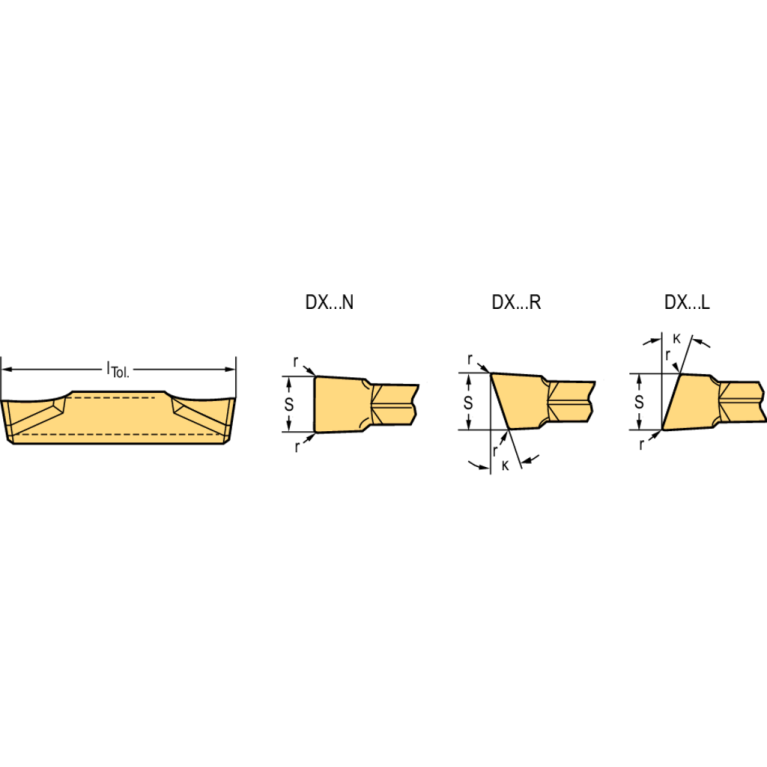

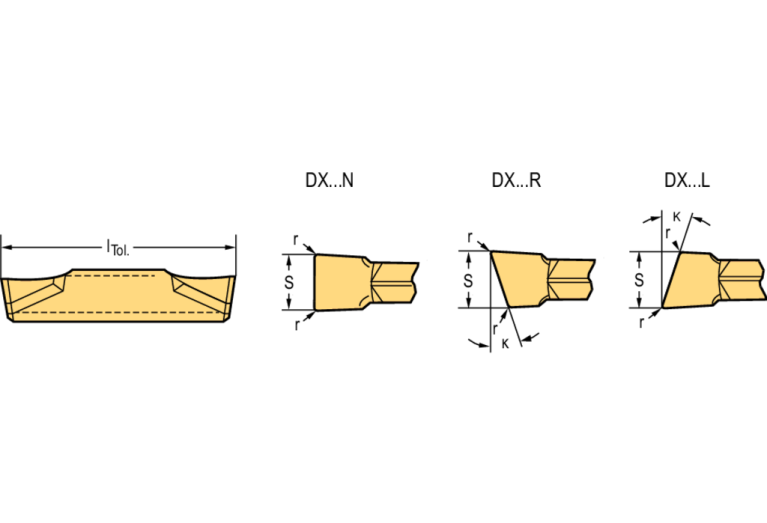

Grooving and parting off – cutting inserts DX
GRDMFG Grade manufacturers designation
WSM33S
ID Technical product number
7910427
IFS Insert mounting style code
7 - Prismatic clamping, concave
IH Insert hand
R - Right
INSL Insert length
18 mm
Interface codes
J6 / J61
ISO
WR$$DX1815007$$EX$$
ISYC Subclass
202-03 - Insert, two cutting edges for grooving and parting, self clamping
LOC-03 ISO
WR$$DX1815007$$EX$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
W-DX1815007$$EX$$
Name Identifying order number
DX18-1E150R10-CF5 WSM33S
NOF Flute count
2
PFS Profile form
2
PSIRR Cutting edge angle major right hand
10 Degree
REL Corner radius left hand
0 mm
RER Corner radius right hand
0 mm
S Insert thickness
3.6 mm
S1 Insert thickness total
4.43 mm
TCE Tipped cutting edge code
S
Working process
DEA - Outer diameter grooving,DEI - Grooving,DSS - Face grooving
WT Weight of item
0.002 kg
