Главная Каталог продукции Toolunited 11 201-05 - Parallelogram-shaped insert BODT09T308R-001 IN62C

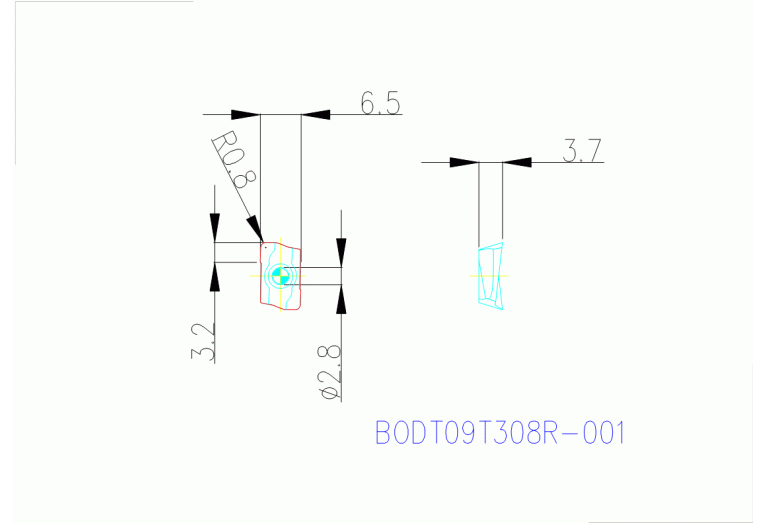

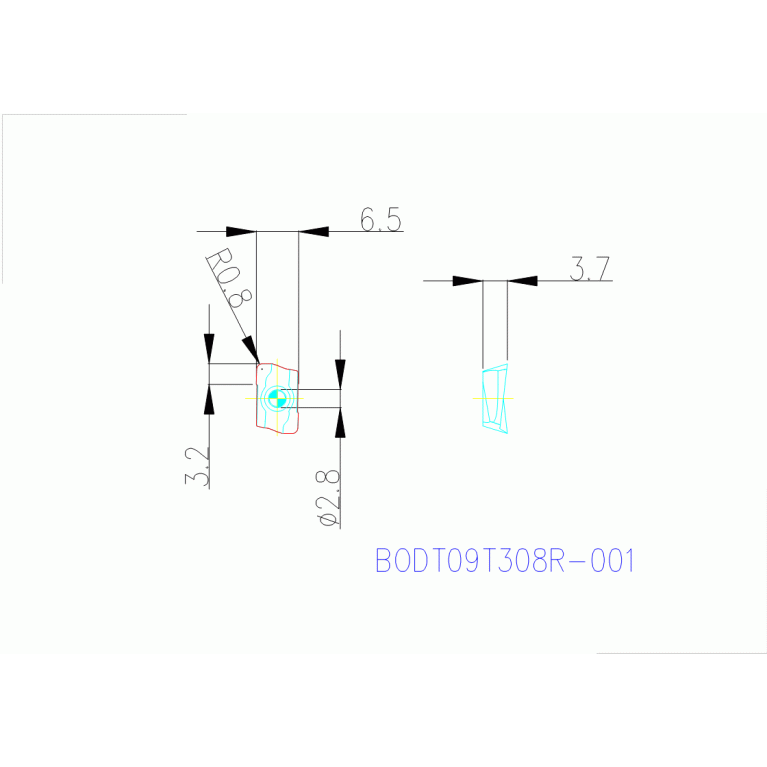

BODT09T308R-001 IN62C

Артикул: 5863689

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

2.8 mm

Delivery state

NL - Discontinued

DIN

BO09T3 3R

EPSR Insert included angle

82 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M15-M25

GRDMFG Grade manufacturers designation

IN62C

GRDPRIO Standard designation of the grade main application

P15-P25

IC Inscribed circle diameter

6.6 mm

ID Technical product number

5863689

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

2.3 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

BO09T3 3R

Name Identifying order number

BODT09T308R-001 IN62C

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.8 mm

STDDES Standard designation

BODT09T308

W1 Insert width

6.6 mm

Working process

No working processes available
