Главная Каталог продукции Toolunited 11 201-05 - Parallelogram-shaped insert BCKT130402R-DT2 IN90D

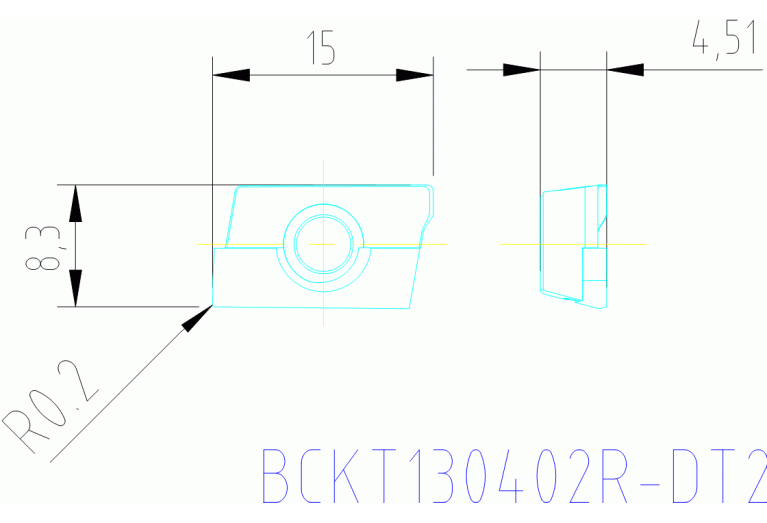

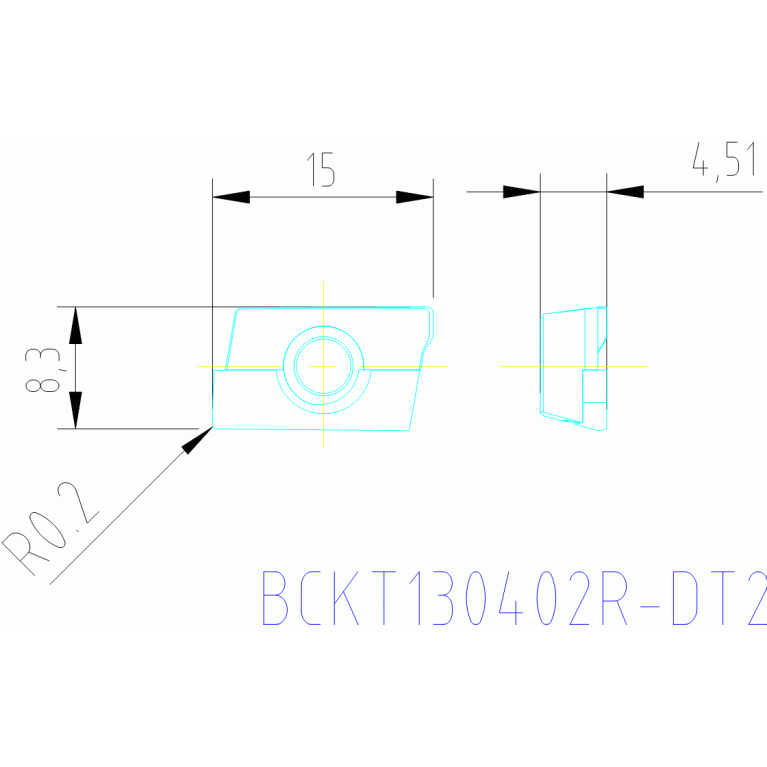

BCKT130402R-DT2 IN90D

Артикул: 5880294

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7.5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

DT2

COATN Coating

PKD

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.7 mm

Delivery state

LH - Stocked

DIN

BC1304 3R

EPSR Insert included angle

82 Degree

FamilyProducts

insert, single-edged, positive insert with long PCD tip with R0,2

GRDMFG Grade manufacturers designation

IN90D

GRDPRIO Standard designation of the grade main application

N01-N10

IC Inscribed circle diameter

8 mm

ID Technical product number

5880294

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

13 mm

LE Cutting edge effective length

12.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

BC1304 3R

Name Identifying order number

BCKT130402R-DT2 IN90D

RE Corner radius

0.2 mm

S Insert thickness

4.5 mm

S1 Insert thickness total

4.5 mm

STDDES Standard designation

BCKT130402

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

8 mm

Working process

FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FPR - Profile milling
