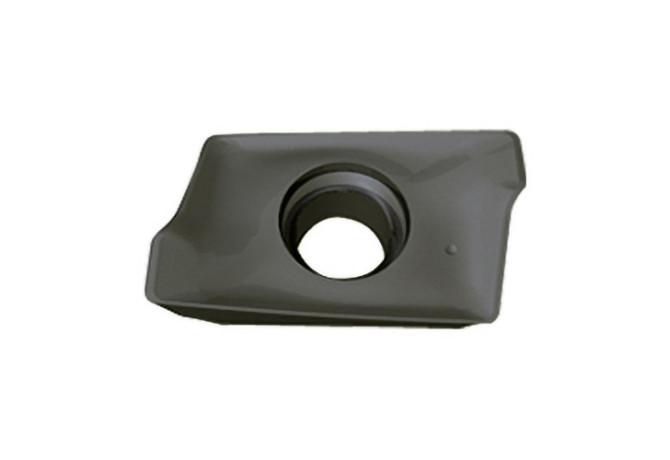

AOMT120404R IN2540

Артикул: 5873198

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiAIN+TIN

COMPC Company code

IL - Ingersoll

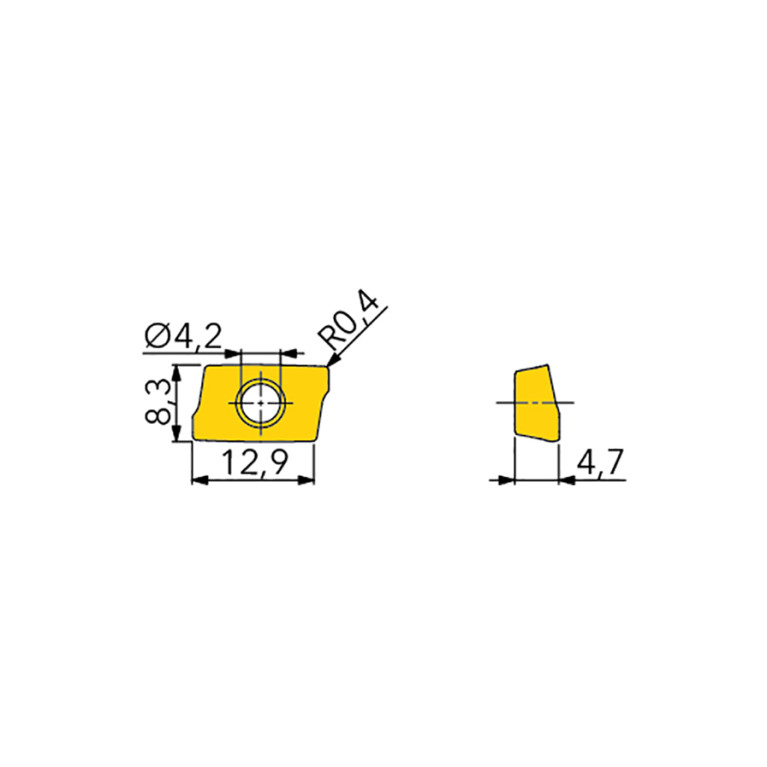

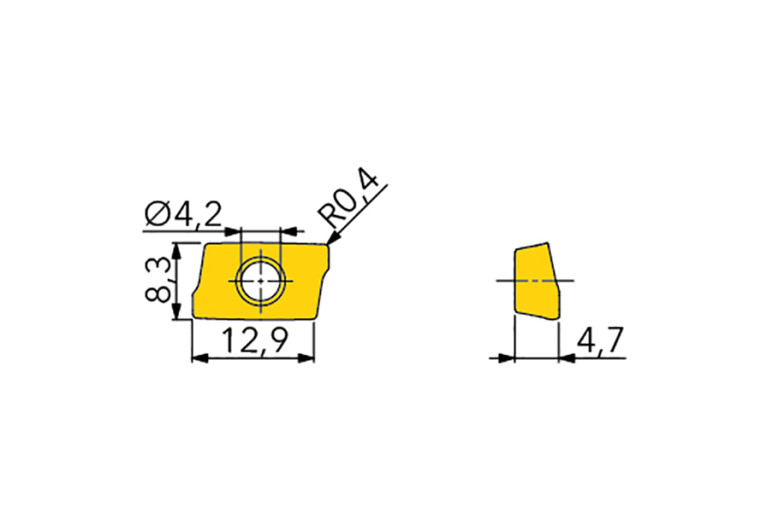

D1 Fixing hole diameter

4.2 mm

Delivery state

NL - Discontinued

DIN

AO1204 3R

EPSR Insert included angle

85 Degree

FamilyProducts

insert, positive geometry R0,4

GRDMFG Grade manufacturers designation

IN2540

GRDPRIO Standard designation of the grade main application

P15-P35

IC Inscribed circle diameter

8.3 mm

ID Technical product number

5873198

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

12.2 mm

LE Cutting edge effective length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AO1204 3R

Name Identifying order number

AOMT120404R IN2540

RE Corner radius

0.4 mm

S Insert thickness

4.8 mm

S1 Insert thickness total

4.8 mm

STDDES Standard designation

AOMT120404

TCINS Tolerance class insert

W1 Insert width

8.3 mm

Working process

No working processes available
