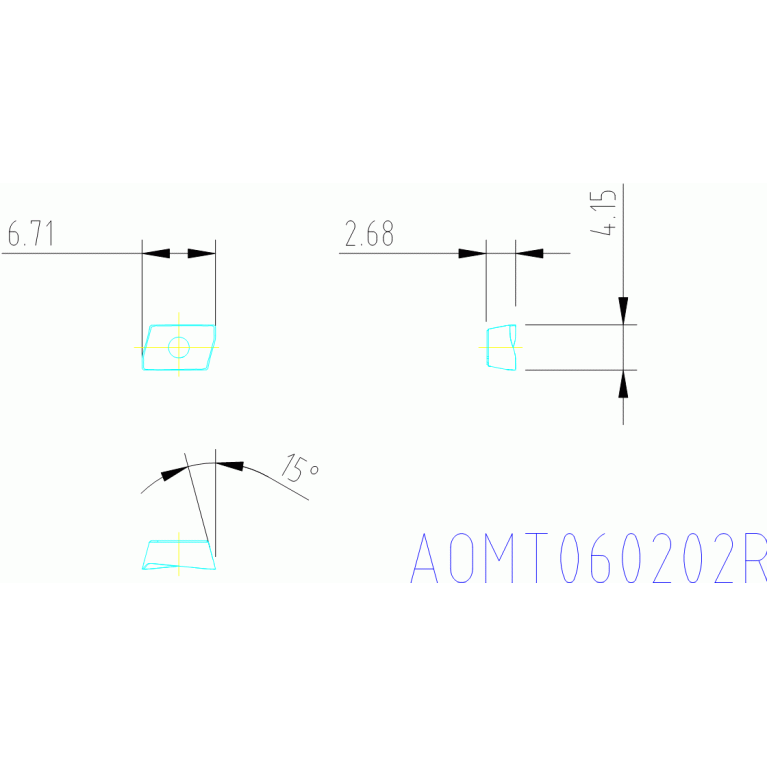

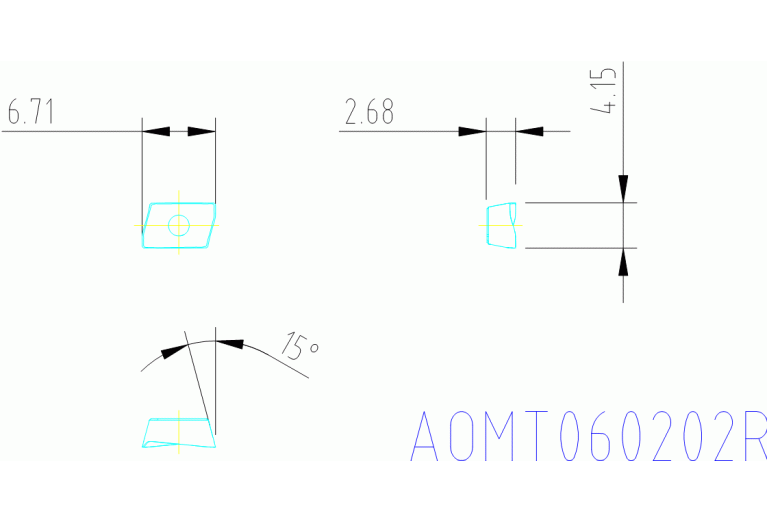

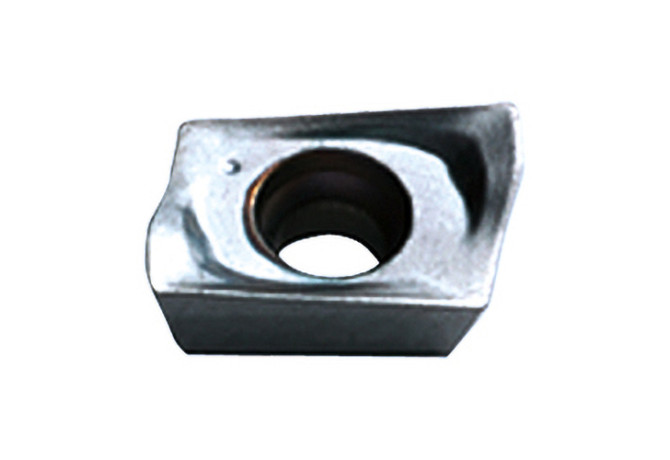

AOMT060202R IN6535

Артикул: 6124839

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

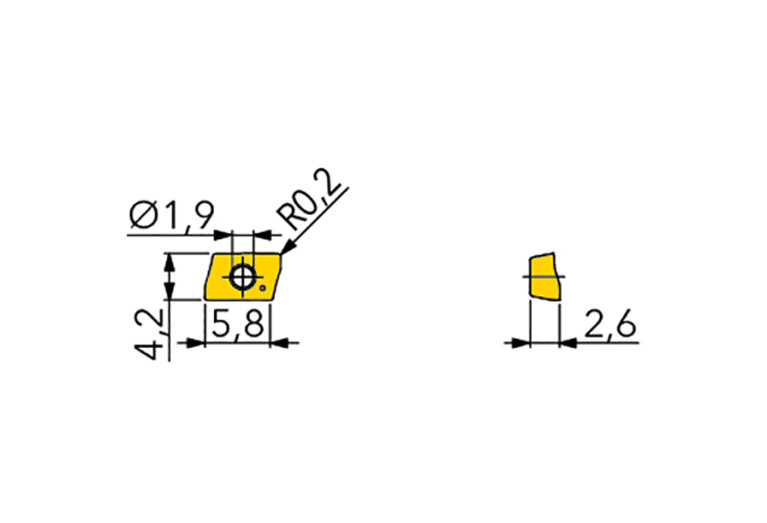

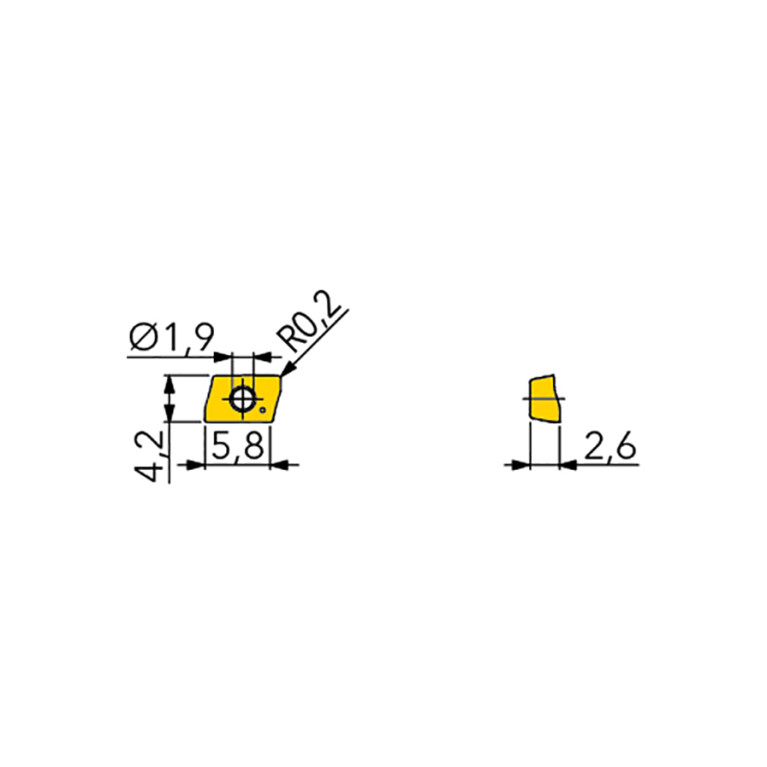

D1 Fixing hole diameter

1.9 mm

Delivery state

NL - Discontinued

DIN

AO0602 3R

EPSR Insert included angle

85 Degree

FamilyProducts

insert, double-edged, positive geometry with R0,2

GRD2ND Standard designation of the grade 2nd application

M20-M35

GRD3RD Standard designation of the grade 3rd application

S15-S30

GRDMFG Grade manufacturers designation

IN6535

IC Inscribed circle diameter

4.2 mm

ID Technical product number

6124839

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

5.6 mm

LE Cutting edge effective length

5.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AO0602 3R

Name Identifying order number

AOMT060202R IN6535

RE Corner radius

0.2 mm

S Insert thickness

2.6 mm

S1 Insert thickness total

2.6 mm

STDDES Standard designation

AOMT060202

TCINS Tolerance class insert

W1 Insert width

4.2 mm

Working process

No working processes available
