Главная Каталог продукции Toolunited 11 201-05 - Parallelogram-shaped insert AOCT120408FR-P IN10K

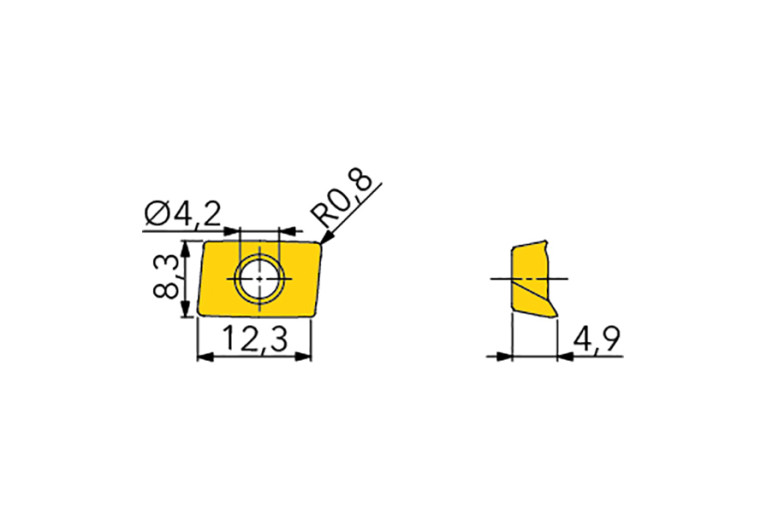

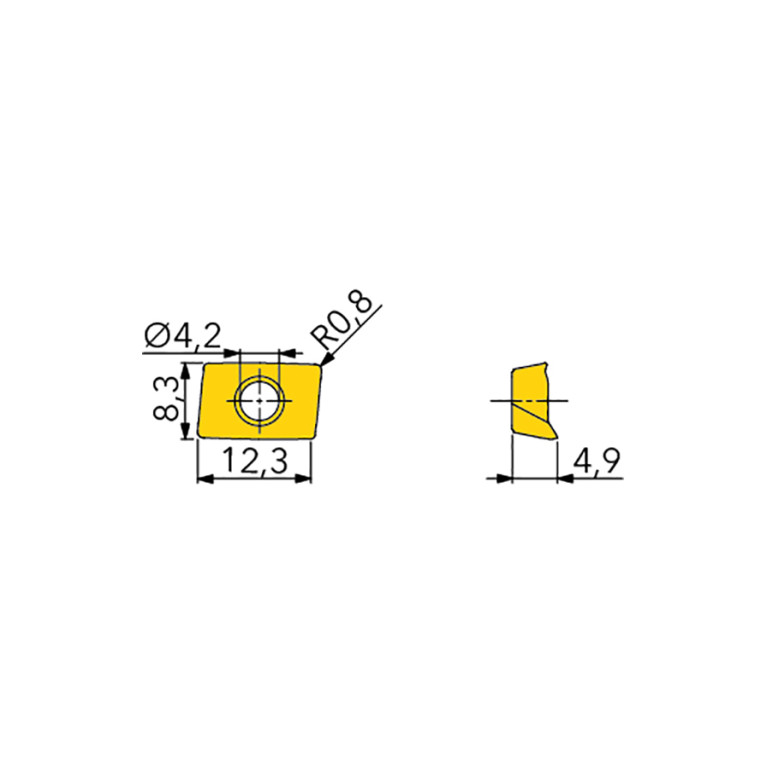

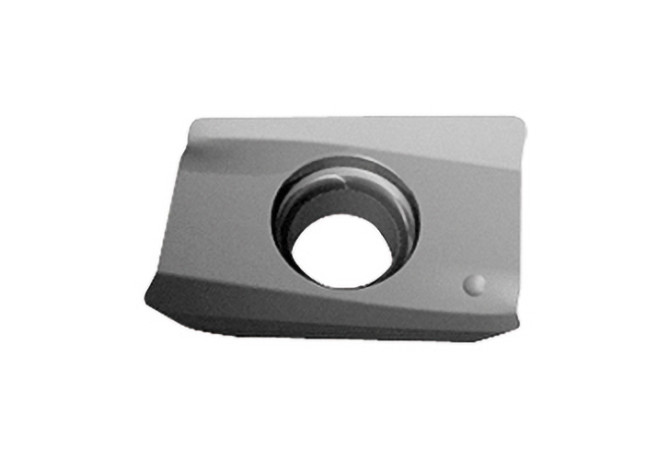

AOCT120408FR-P IN10K

Артикул: 5812139

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4 mm

Delivery state

NL - Discontinued

DIN

AO1204083N

EPSR Insert included angle

85 Degree

FamilyProducts

insert, double-edged, positive, polished and sharp-edged geometry for non-ferrous materials with R0,8

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

IN10K

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

8.3 mm

ID Technical product number

5812139

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

11.2 mm

LE Cutting edge effective length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AO1204083N

Name Identifying order number

AOCT120408FR-P IN10K

RE Corner radius

0.8 mm

S Insert thickness

4.86 mm

S1 Insert thickness total

4.86 mm

STDDES Standard designation

AOCT120408

TCINS Tolerance class insert

W1 Insert width

8.25 mm

Working process

No working processes available
