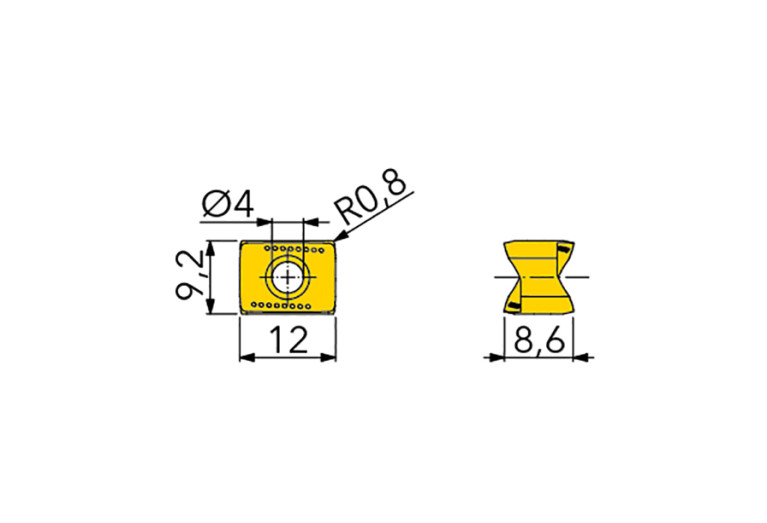

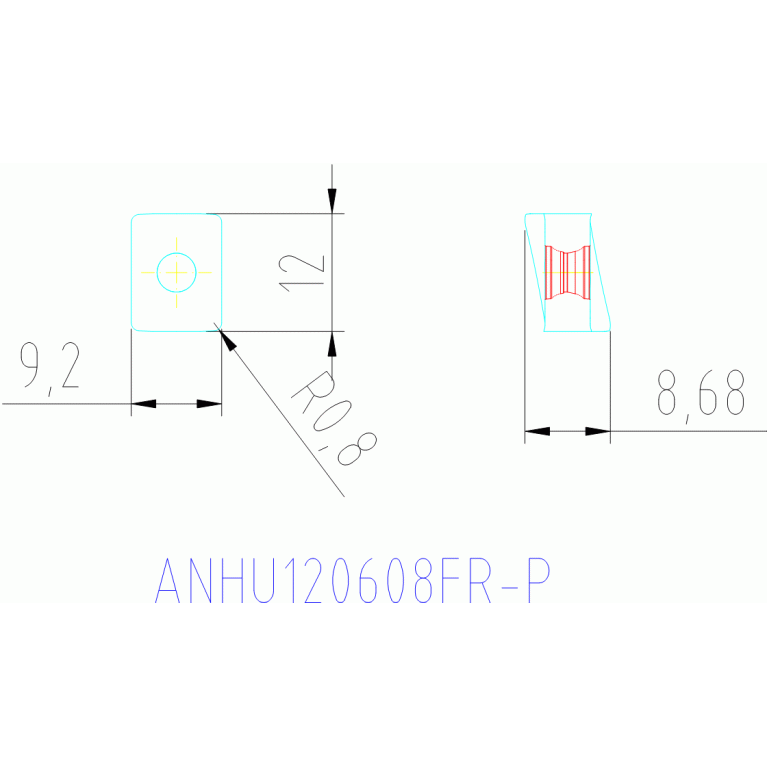

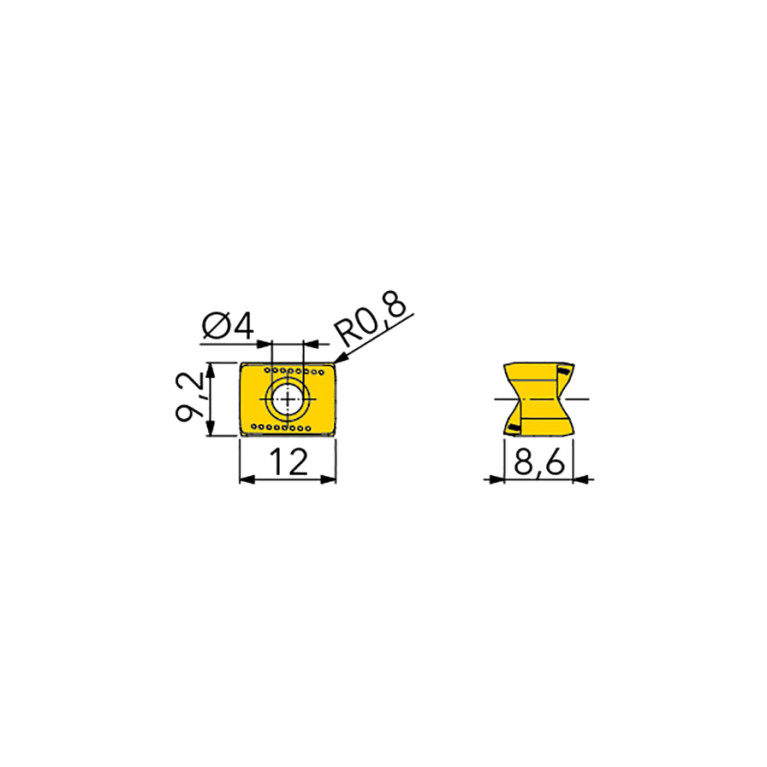

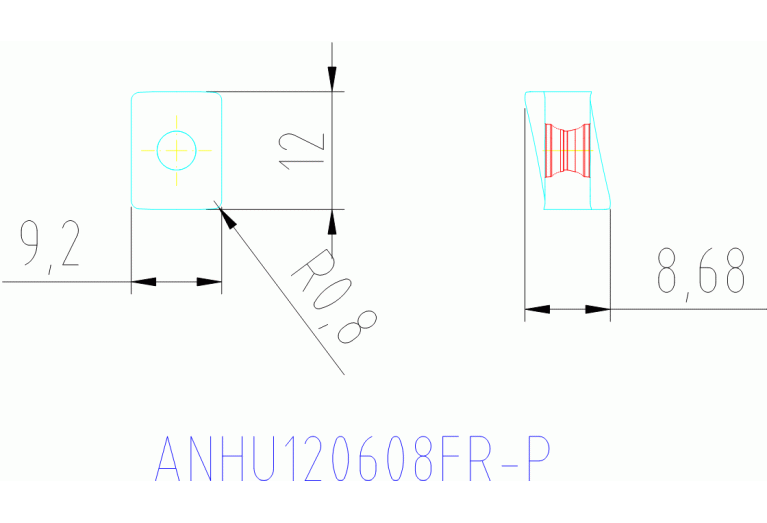

ANHU120608FR-P IN10K

Артикул: 5813460

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4 mm

Delivery state

NL - Discontinued

DIN

AN1206083N

EPSR Insert included angle

85 Degree

FamilyProducts

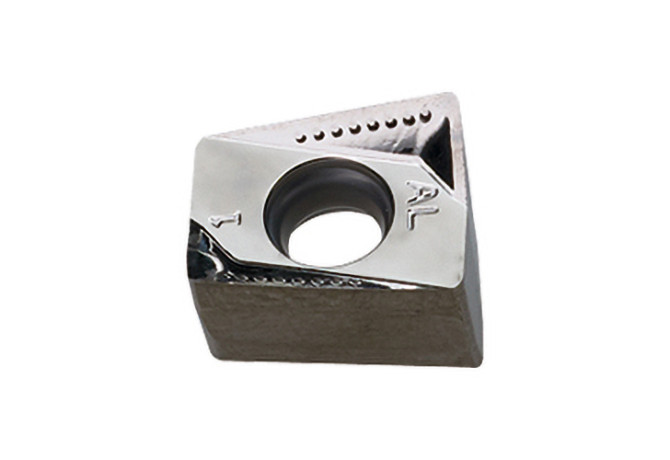

insert, four-edged, positive, polished and sharp-edged geometry for non-ferrous materials with R0,8

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

IN10K

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

9.2 mm

ID Technical product number

5813460

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

10.2 mm

LE Cutting edge effective length

11.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AN1206083N

Name Identifying order number

ANHU120608FR-P IN10K

RE Corner radius

0.8 mm

S Insert thickness

8.6 mm

S1 Insert thickness total

8.6 mm

STDDES Standard designation

ANHU120608

TCINS Tolerance class insert

W1 Insert width

9.2 mm

Working process

No working processes available
