71403132
71403132
Артикул:
71403132
В наличии
Характеристики
BN Face land width
0.09 mm
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
CTBS20C
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
5.16 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
55 Degree
FamilyProducts
PCBN-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
BC-S20

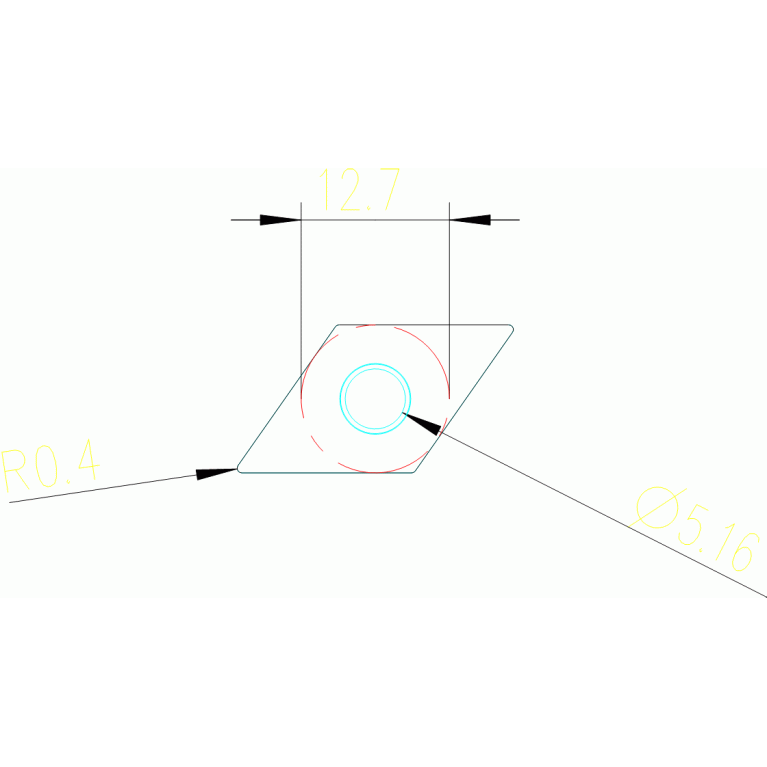

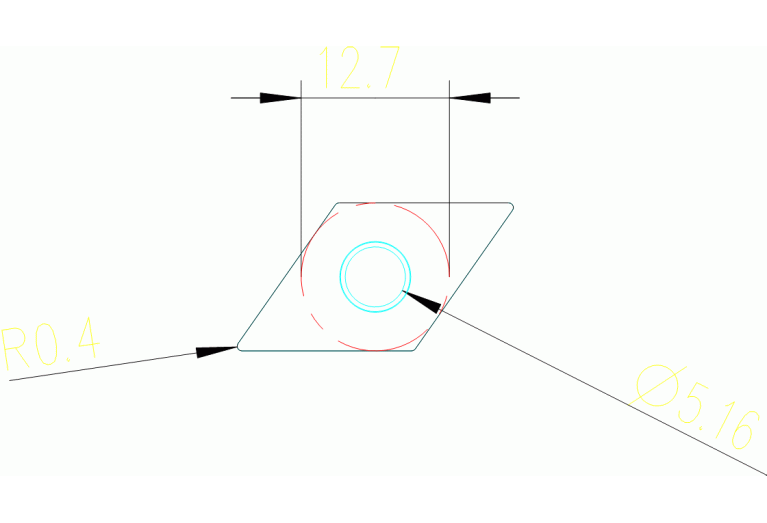

IC Inscribed circle diameter
12.7 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
15.5 mm
LE Cutting edge effective length
2.8 mm
Name Identifying order number
71403132
NOI Insert index count
4
RE Corner radius
0.4 mm
S Insert thickness
6.35 mm
TCE Tipped cutting edge code
L
TCINS Tolerance class insert
G
Working process
No working processes available
