7116052000
7116052000
Артикул:
7116052000
В наличии
Характеристики
AN Clearance angle major
7 Degree
BN Face land width
0.13 mm
CECC Cutting edge condition code
T - Chamfered
COATN Coating
CTBH21U
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
35 Degree
FamilyProducts
PCBN-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
BL-H20

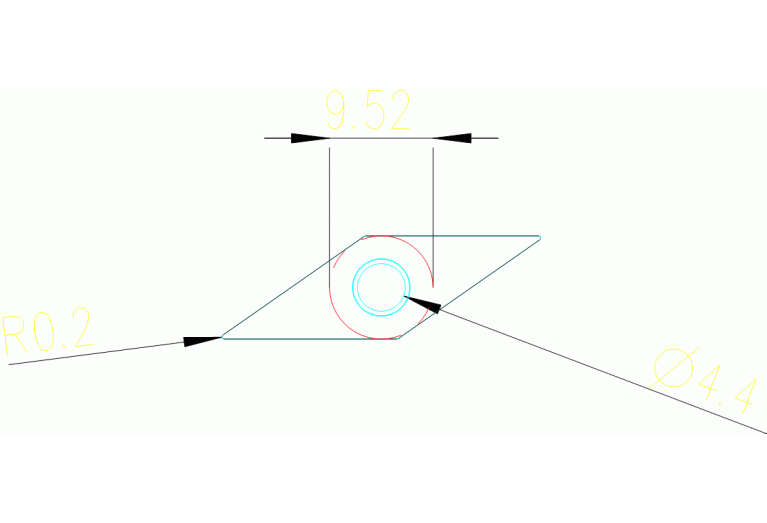

IC Inscribed circle diameter
9.52 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
16.6 mm
LE Cutting edge effective length
3.5 mm
Name Identifying order number
7116052000
NOI Insert index count
1
RE Corner radius
0.2 mm
S Insert thickness
4.76 mm
TCE Tipped cutting edge code
A
TCINS Tolerance class insert
G
Working process
No working processes available
