7113411200
7113411200
Артикул:
7113411200
В наличии
Характеристики
AN Clearance angle major
7 Degree
CECC Cutting edge condition code
F - Sharpedged
COATN Coating
CTDPD20
COMPC Company code
CE - Ceratizit

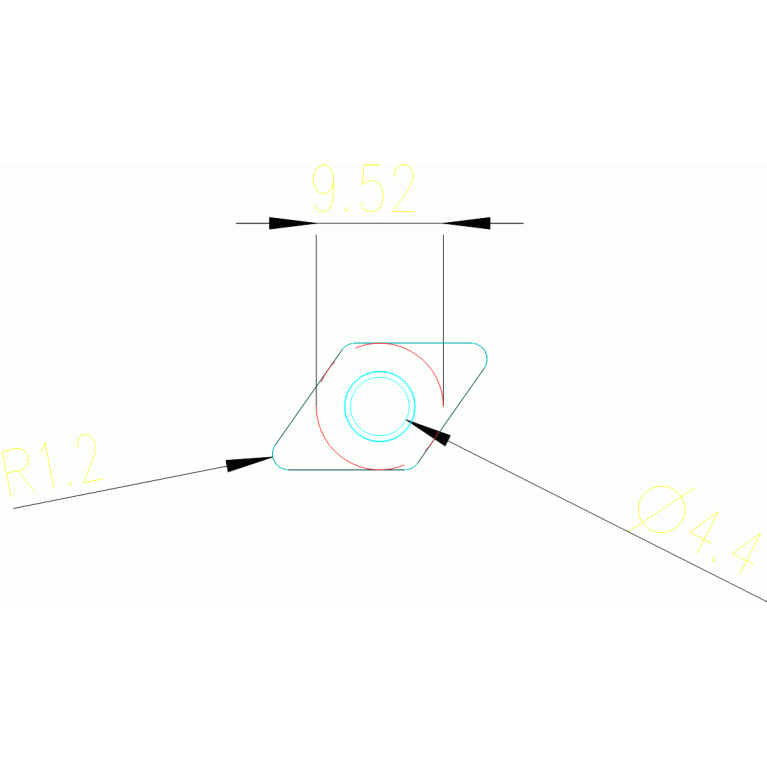

D1 Fixing hole diameter
4.4 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
55 Degree
FamilyProducts
PKD-DREHWENDEPLATTE
GRDPRIO Standard designation of the grade main application
DP-N20
IC Inscribed circle diameter
9.52 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
11.6 mm
LE Cutting edge effective length
3.5 mm
Name Identifying order number
7113411200
NOI Insert index count
1
RE Corner radius
1.2 mm
S Insert thickness
3.97 mm
TCE Tipped cutting edge code
A
TCINS Tolerance class insert
G
Working process
No working processes available
