Артикул:
50443648
В наличии
Характеристики
AN Clearance angle major
11 Degree
BS Wiper edge length
1.7 mm
CBMD Chip breaker manufacturers designation
-27P
CECC Cutting edge condition code
F - Sharpedged
COATN Coating
AMZ
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
2.8 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
85 Degree

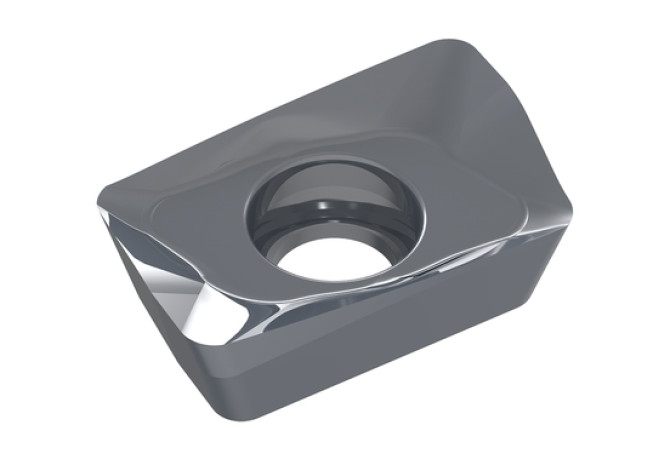

FamilyProducts
HM-FRÄSWENDEPLATTE
GRD2ND Standard designation of the grade 2nd application
HC-K10
GRDPRIO Standard designation of the grade main application
HC-N10

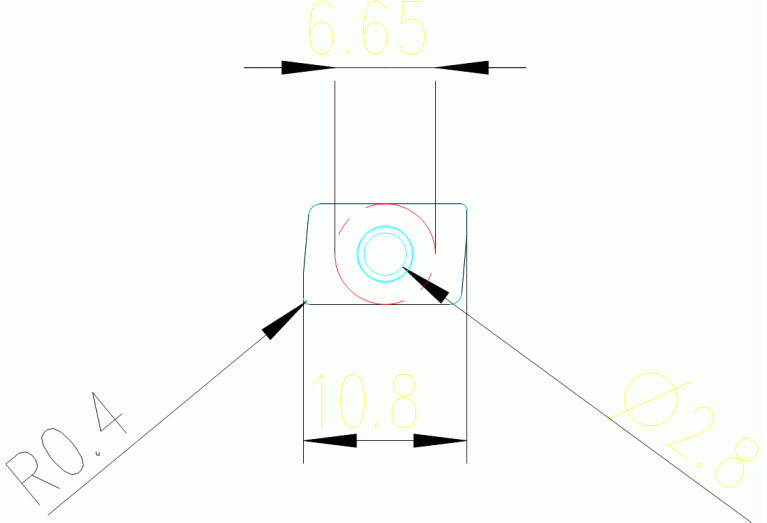

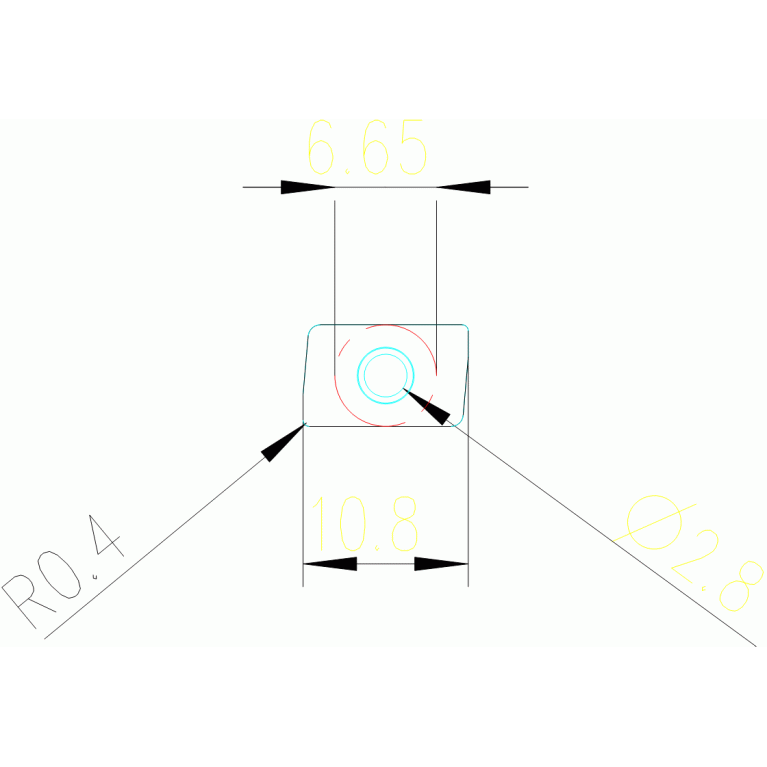

IC Inscribed circle diameter
6.65 mm
IH Insert hand
R - Right
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-05 - Parallelogram-shaped insert
L Cutting edge length
10.8 mm
Name Identifying order number
50443648
RE Corner radius
0.4 mm
S Insert thickness
3.5 mm
TCINS Tolerance class insert
H
Working process
No working processes available
